Bundle: SDM630MCTE-MID With Three Phase Current Transformer

Why order with Anymeters?

•     Fast Next-Day Delivery on stocked products you need quickly.
•     1PM Cut-Off for Same-Day Dispatch, clear timelines, no guesswork.
•     Free Delivery on Orders Over £500; added value for larger projects.
•     Hassle-Free Returns Process with quick pre-authorisation support.
•     Easy Damage Claims, notify us within 5 days with photos for swift help.

Product Features:

Meter Information:

• MID B&D Approved - 0120/SGS0150

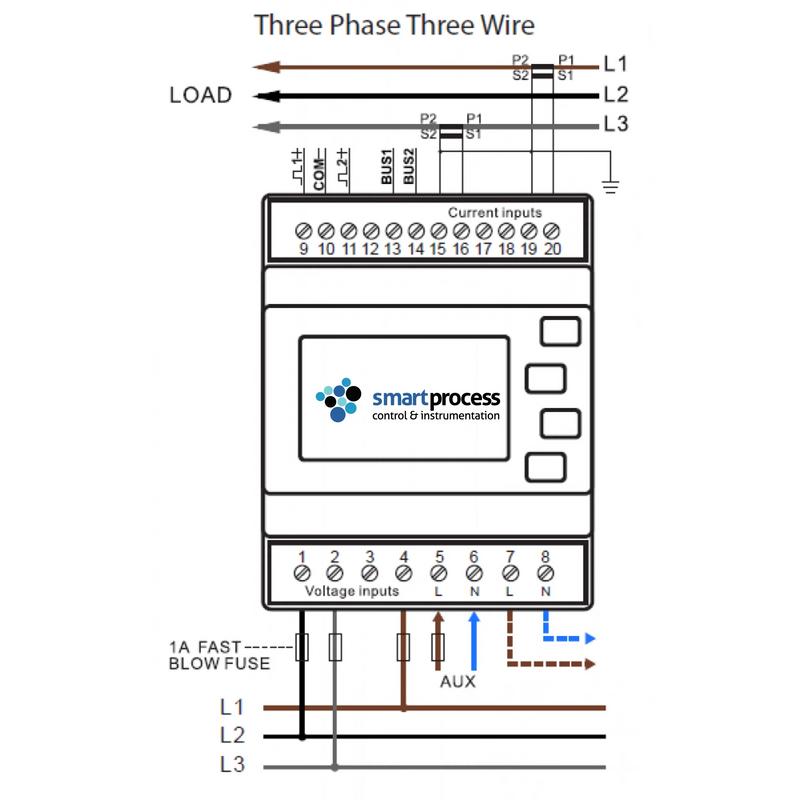

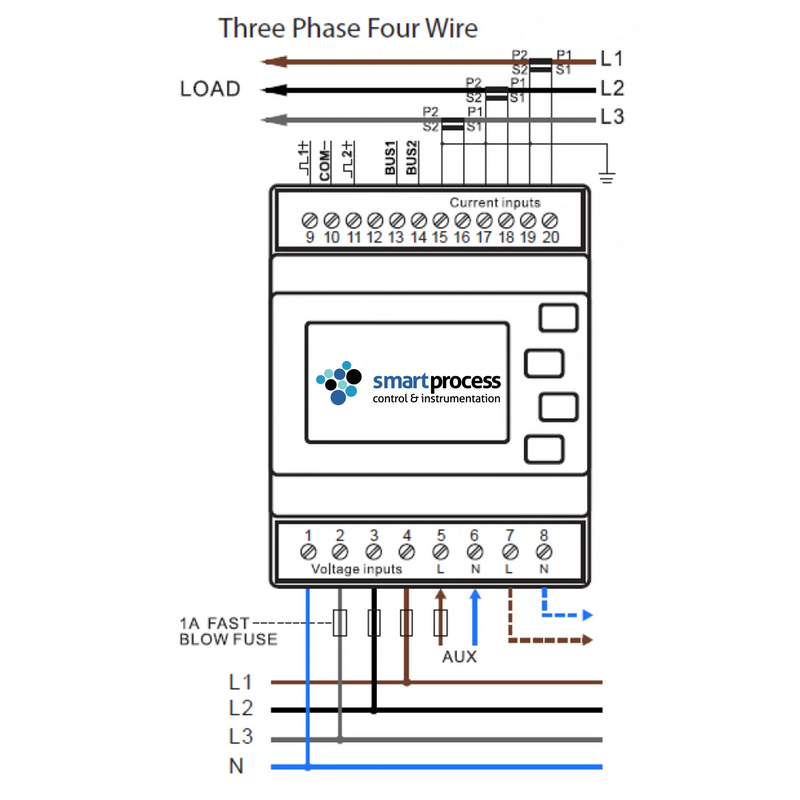

• Single Phase (1P2W) or Three Phase (3P3W or 3P4W)
• Multifunction Meter (16 different parameters)
• CT Operated (1A or 5A secondary - settable)
• 230/400V AC
• RS485 Modbus RTU
• Dual Pulse Outputs built-in

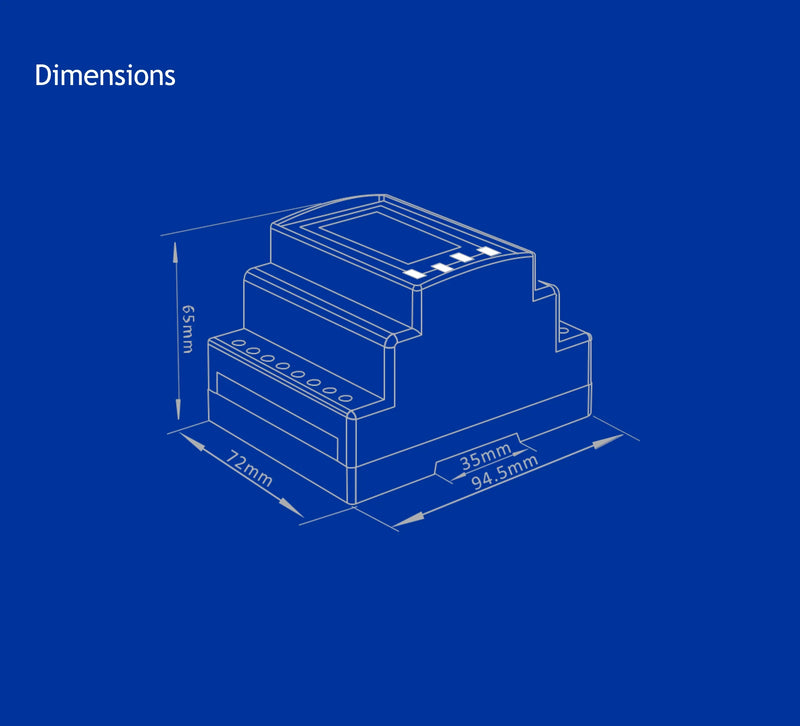

• 4-DIN Module
• Digital Backlit Display
• Touch Screen Buttons

CT Information:

• Split Core
• 100-250A (24mm Aperture) 300-600A (36mm Aperture)
• 5A Secondary Current
• 1m Fly Lead (2.5mm Wire)
• Accuracy Class 1

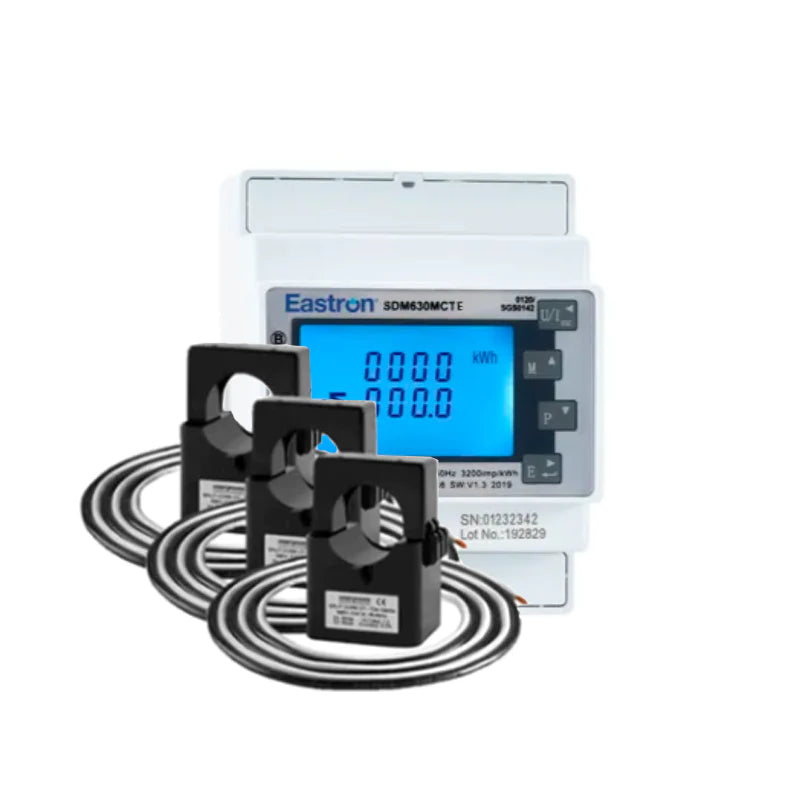

This bundle includes 1pc of Eastron SDM630MCTE-MID and 3pcs of Eastron T24 Current Transformer

You will need to confirm what Current Transformer ratio you require before checkout, as per the options section below.
