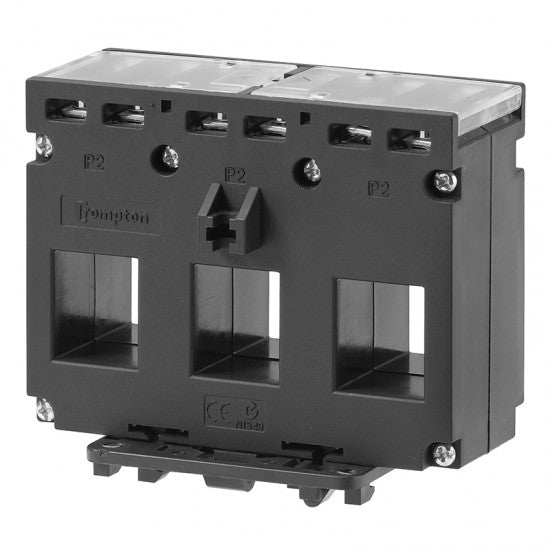

The M3N1 Range of 3-in-1 Current Transformers from Crompton Instruments combine three traditional Current Transformers into one moulded case. These can be directly installed in line with a three phase moulded case circuit breaker, saving installation time and taking up less space than three individual CTs. The M3N1-35 is ideal for applications such as Distribution systems, Generator sets, Control Panels and Switchgear.

Technical Specification

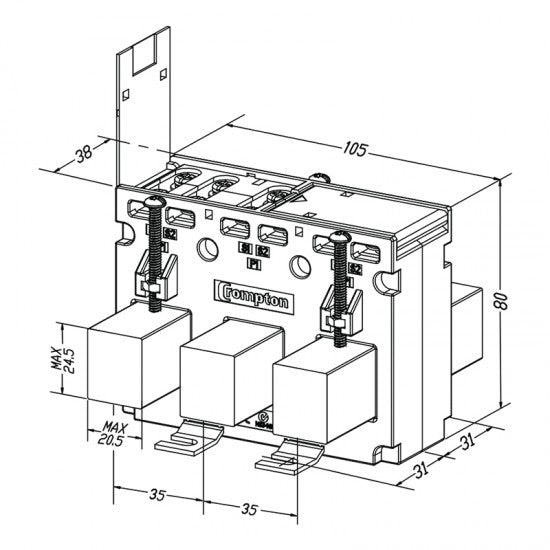

• 35mm Centres
• 20.5mm x 24.5mm Aperture
• 100-250A Primary Current
• 5A Secondary Current
• Secondary M4 Screw Terminals
• Accuracy Class 0.5, 1 or 3
• Busbar or DIN Rail Mounted
