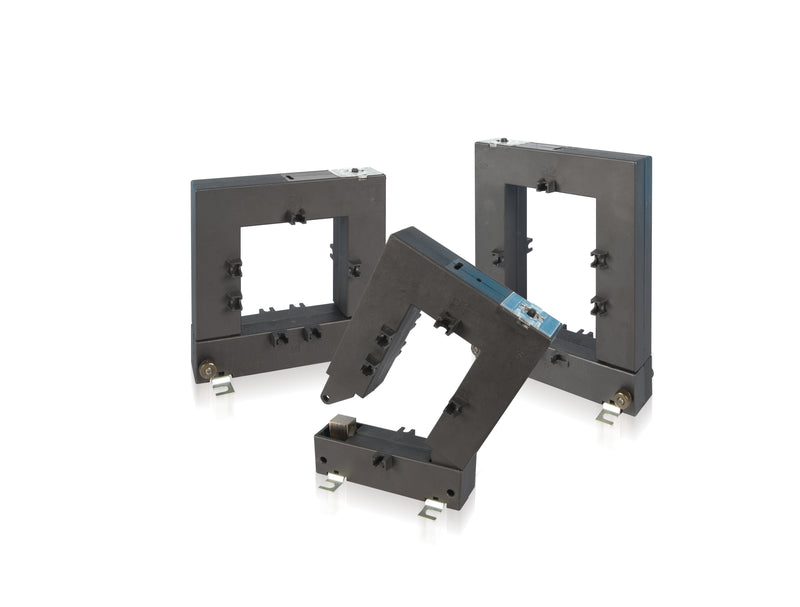

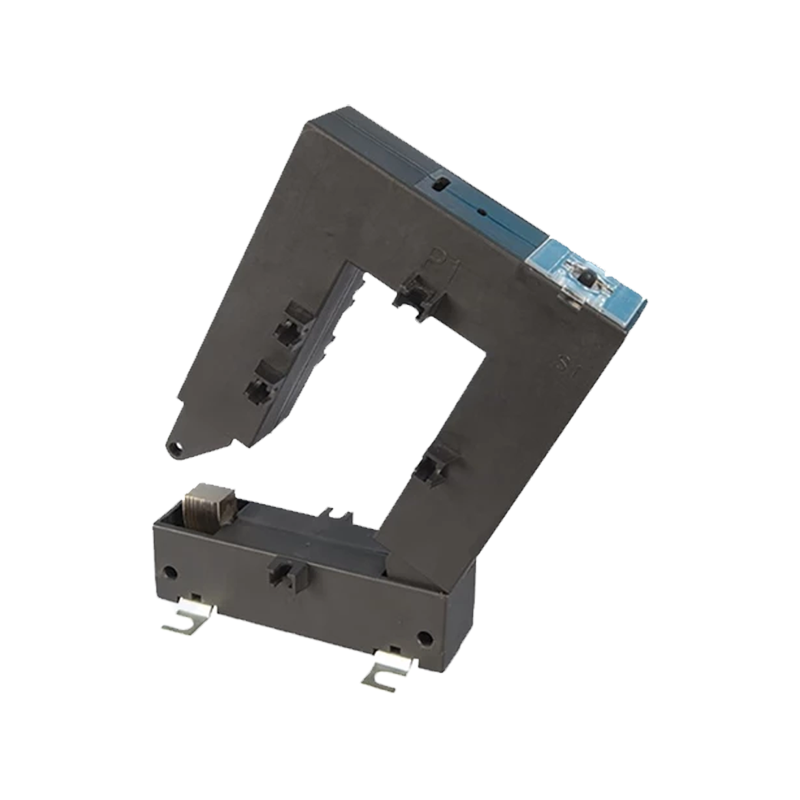

SC4 Split Core Current Transformer (500-1600A) /5A
£49.00
Excluding VAT. Shipping calculated at checkout.
MID
Approved
Approved
Secure
Checkout
Checkout
Fast UK
Delivery
Delivery
Product Specifications
PRODUCT FEATURES
Overview
PRODUCT FEATURES:
- Split Core
- Single Phase

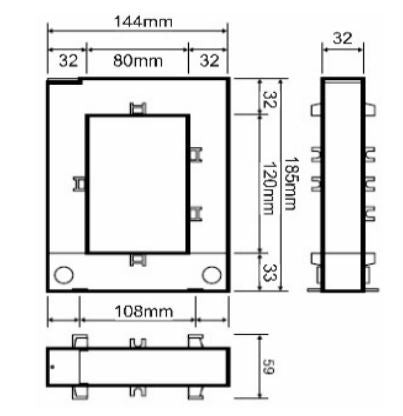

- 80x120mm Aperture
- 500-1600A Primary Current
- 5A Secondary Current
- Accuracy Class 0.5
- Foot or busbar mounted
The SC4 is a split core current transformer that offers a cost effective and efficient method by which the current can be measured without the need to break the conductor, thereby reducing installation and commissioning time
