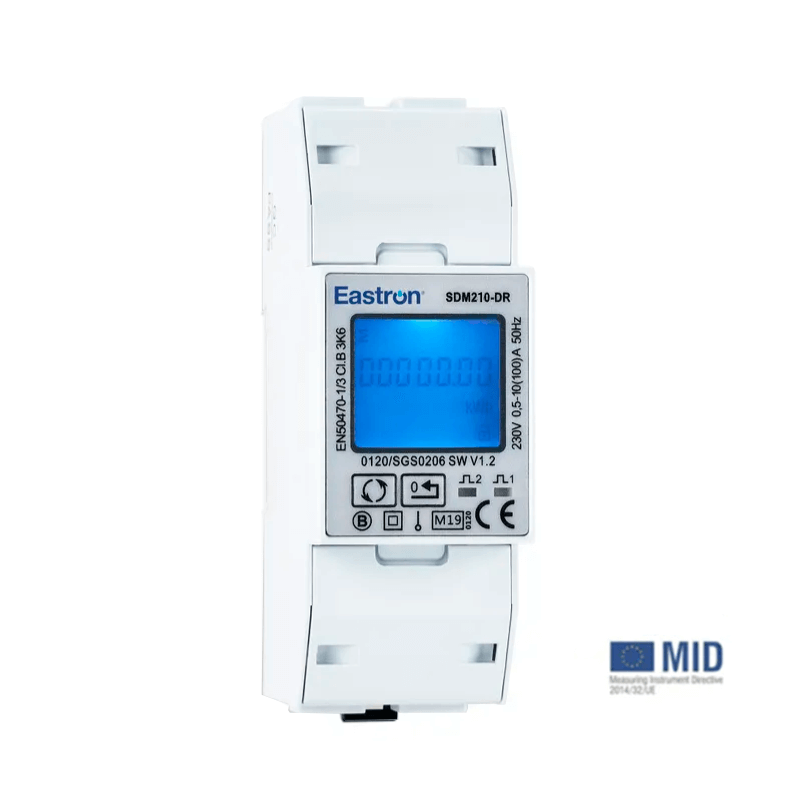

SDM210DR-MID
£35.00
Excluding VAT. Shipping calculated at checkout.
MID
Approved
Approved
Secure
Checkout
Checkout
Fast UK
Delivery
Delivery
Product Specifications
PRODUCT FEATURES
Overview
Product Features:
- MID B&D Approved - 0120/SGS0198
- Single Phase (1P2W)
- Displays Total Active Energy (kWh), Power (W), Current (I), Voltage (V), Import Energy (kWh), Export Energy (kWh) and Partial Resttable Energy (kWh).
- 100A AC
- 230V
- Dual Pulse Outputs
- 2-DIN Module
- Digital Backlit Display
SDM210DR is a basic digital single-phase kWh energy meter, which measures up to 100A direct load. The unit measures total Active Energy (kWh), Power (W), Current (I), Voltage (V), Import Energy (kWh), Export Energy (kWh) and Partial Resttable Energy (kWh). This meter is very popular due to its cost-effectiveness and simplicity of installation. This Series has been assessed and certified as meeting the requirements of EC Directive 2004/22/EC. The EC Type Examination Certificate Number is 0120/SGS0206.
