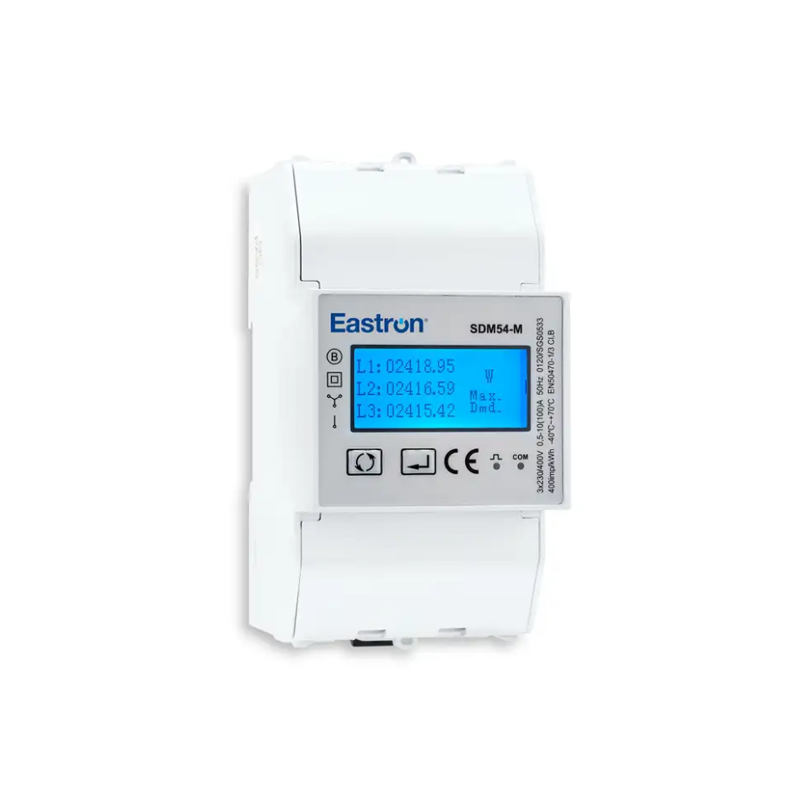

Smart Process SDM54 MODBUS MID Three Phase Power Analyser

Why order with Anymeters?

•     Fast Next-Day Delivery on stocked products you need quickly.
•     1PM Cut-Off for Same-Day Dispatch, clear timelines, no guesswork.
•     Free Delivery on Orders Over £500; added value for larger projects.
•     Hassle-Free Returns Process with quick pre-authorisation support.
•     Easy Damage Claims, notify us within 5 days with photos for swift help.

Product Features:

• Single or Three phase
• 100A Direct Connected
• MID B+D Certified
• Class B Accuracy
• Bi-Directional Measurement for Active Energy and Power
• Configurable pulsed output (Import/ Export and Nett kWh)
• RS485 Modbus Communication
• Multi Parameter measurement
• Dual Tariff option available
• 3 Module DIN rail mounted

The SDM54 measures and displays the characteristics of single phase two wires (1p2w) and three phase four wires (3p4w) supplies, including voltage, frequency, current, power, power factor, active and reactive energy, imported or exported. Energy is measured in terms of kWh and kVArh. Maximum demand on power and current can be measured over pre-set periods of up to 60 minutes. The SDM54 supports max.100A direct loads per phase, with dual tariff management options available. The meter is designed for DIN-rail mounting, housed in a 3 DIN module case, with IP51 front protection. The meter is optionally equipped with pulse outputs, RS485 Modbus port or M-bus port. Configuration can also be done via keypad, which is password protected.
