Smart Process SDM630MCT Mbus-MID Three Phase Power Analyser
Excluding VAT. Shipping calculated at checkout.
Approved
Checkout
Delivery
Product Specifications
Overview
Why order with Anymeters?
- Fast Next-Day Delivery on stocked products you need quickly.
- 1PM Cut-Off for Same-Day Dispatch, clear timelines, no guesswork.
- Free Delivery on Orders Over £500; added value for larger projects.
- Hassle-Free Returns Process with quick pre-authorisation support.
- Easy Damage Claims, notify us within 5 days with photos for swift help.

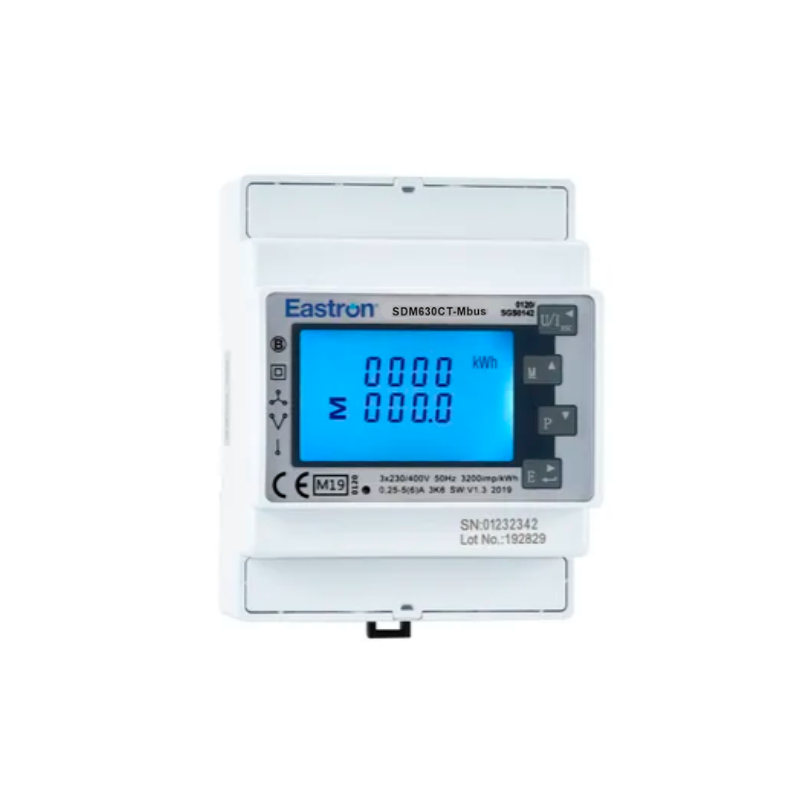

The SDM630MCT Series is a three phase multifunction DIN rail meter. It can measure and display the characteristic of 1p2w,3p3w and 3p4w supplies, including voltage, current, power, active and reactive energy imported or exported. Energy is measured in terms of kWh, kVarh. Max demand current can be measured over preset periods of up to 60 minutes. In order to measure energy, the unit requires voltage and current inputs in addition to the supply required to the power the meter. The required current inputs are obtained via current transformers. This meter can be configurable to work with a wide range of CTs, giving the unit a wide range of operation. Build-in interface provides pulse and Mbus outputs and the configuration is password protected.
Technical Specification
- MID B&D Approved

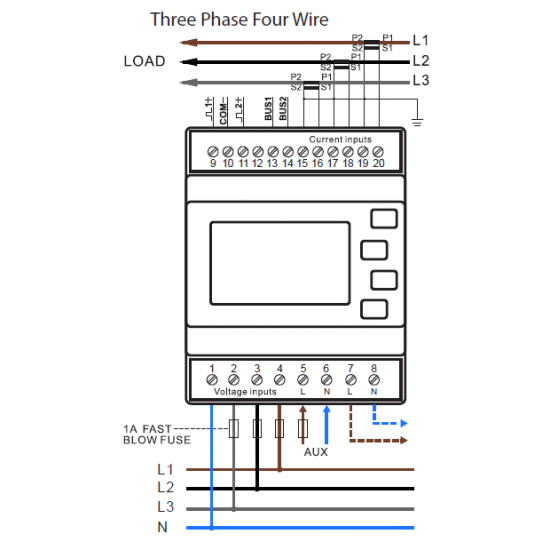

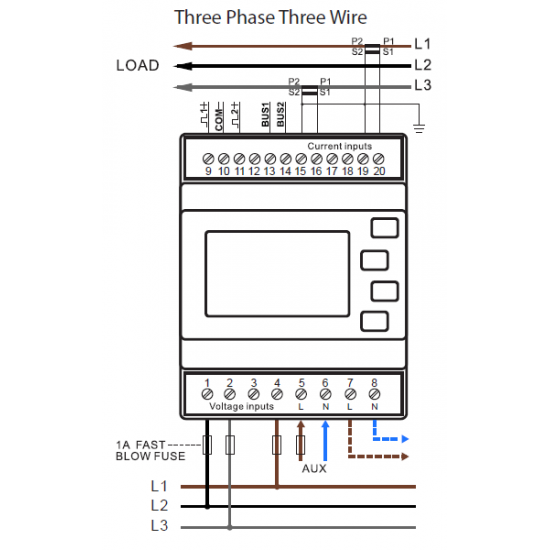

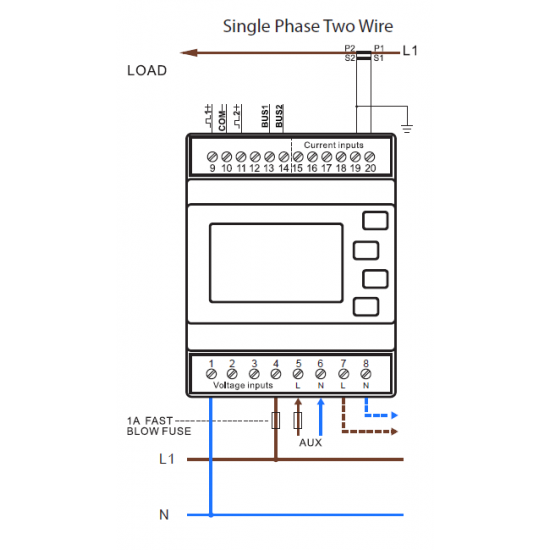

- Single Phase (1P2W) or Three Phase (3P3W or 3P4W)
- Multifunction Meter (16 different parameters)
- CT Operated (1A or 5A secondary - settable)
- 230/400V AC
- Mbus Communications
- Dual Pulse Outputs built in
- 4-DIN Module
- Digital Backlit Display
- Touch Screen Buttons
