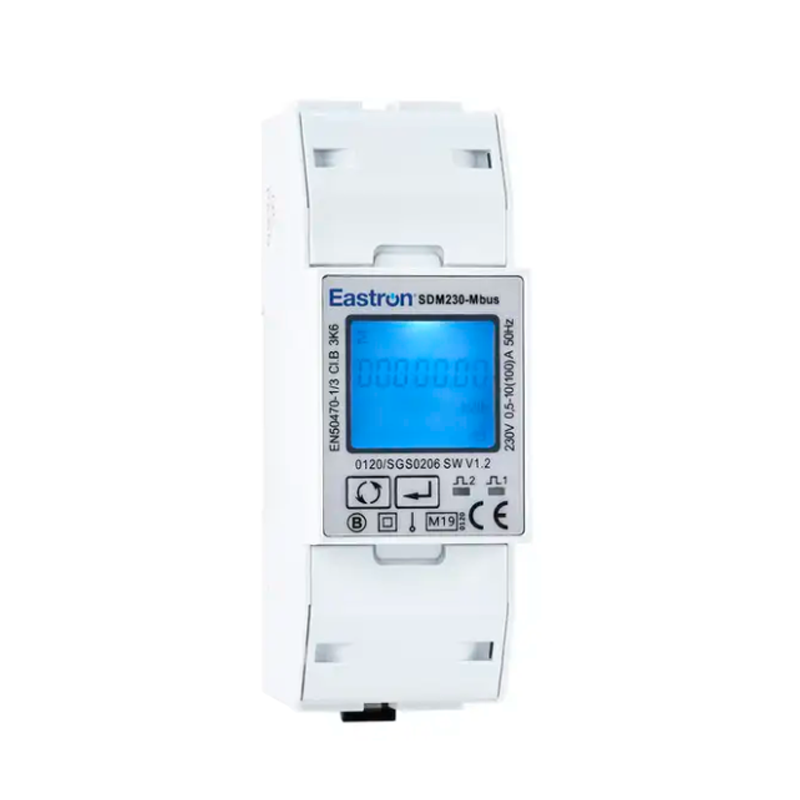

Smart Process SDM230-Mbus Single Phase Power Analyser

Why order with Anymeters?

•     Fast Next-Day Delivery on stocked products you need quickly.
•     1PM Cut-Off for Same-Day Dispatch, clear timelines, no guesswork.
•     Free Delivery on Orders Over £500; added value for larger projects.
•     Hassle-Free Returns Process with quick pre-authorisation support.
•     Easy Damage Claims, notify us within 5 days with photos for swift help.

SDM230 series is an advanced digital single phase multi-function energy meter, which measures up to 100A direct load. The unit measures active energy, reactive energy, current, voltage, power, power factor, frequency, demand, etc. Bi-directional measurement makes this unit an ideal choice for Solar PV measurement. A remote communication port is provided, M-bus EN13757-3 and Communication parameters are password protected in setup mode. User can check data and set up the meter via the buttons on the front panel.

Technical Specification

• MID B&D Approved - 0120/SGS0198
• Single Phase (1P2W)
• 100A AC
• 230V AC
• Multifunction
• MBus Comms
• Dual Pulse Outputs
• 2-DIN Module
• Digital Backlit Display

Click Here For Product Datasheet
