Products Features:
- Split Core
- Single Phase

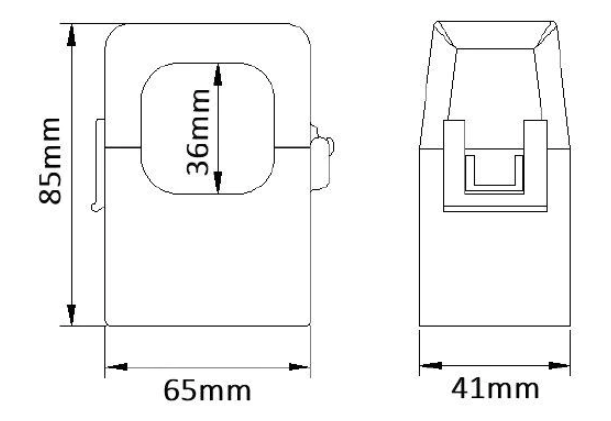

- 36mm² Aperture
- 300-600A Primary Current
- 5A Secondary Current
- 1m Fly Lead (2.5mm Wire)
- Accuracy Class 1

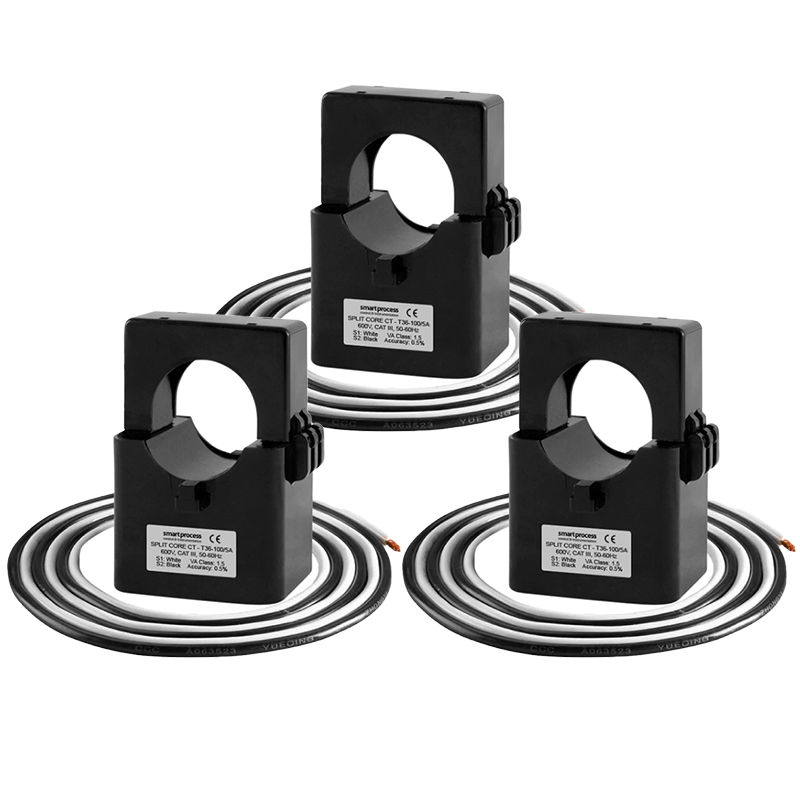

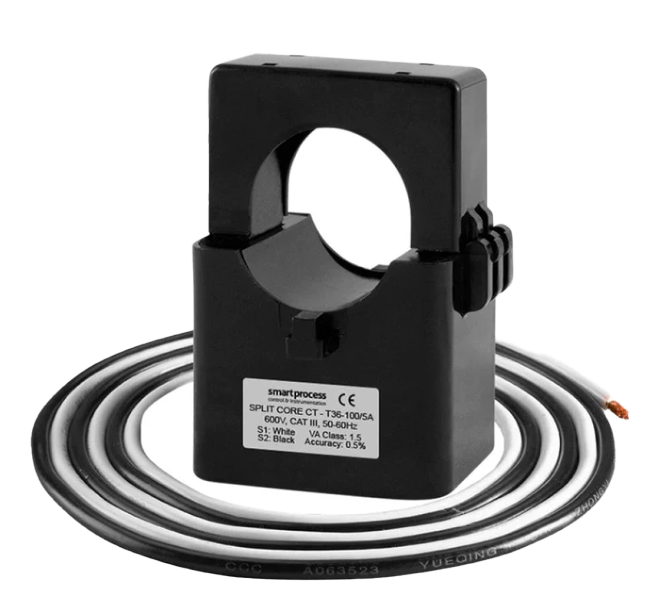

The T36 Range of Split Core Current Transformers work in conjunction with any 5A CT Operated Electricity Meters. Due to the style of these Split Core Current transformers, you can easily install them without needing to break any conductors. These 3pcs of these current transformers are perfect for Three Phase applications. The Aperture on this model accommodates 36mm² Cable. The T36 is ideal for applications such as Distribution systems, Generator sets, Control Panels, and Switchgear
