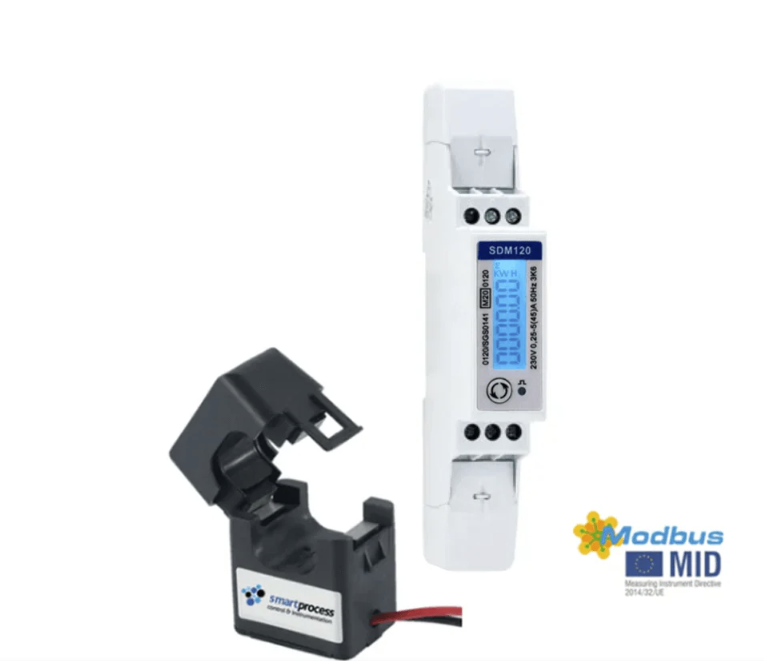

This is a bundle part that includes 1 x SDM120CTM and 1 x ESCT-TA16-100A/100MA. Please note, the meter is present to work with the CT and cannot be reset or work with any other CT unless the ratio matches 100A/100mA.

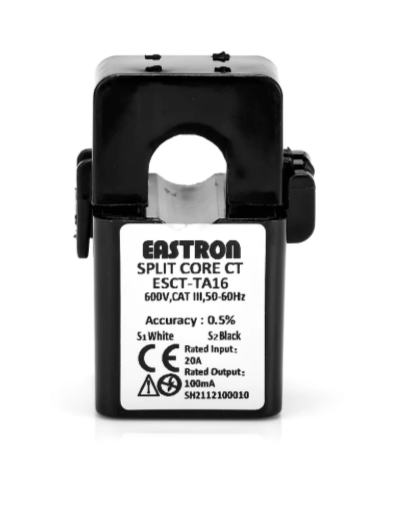

The TA16 Range of Split Core Current Transformers work in conjunction with any 100mA CT Operated Electricity Meters. Due to the style of these Split Core Current transformers, you can easily install them without needing to break any conductors.
The output on these CTs is in milliamps compared to the more traditional 5A secondary. You can use individual TA16 CTs for Single Phase applications, you can also use 3pcs of these current transformers for Three Phase applications. The Aperture on this model accommodates 16mm² Cable.
Meter:
- S1 S2 standard wired terminals
- Single (1ph)
- CT Operated (0.1A / 100mA Secondary CT Input)
- Din Rail Mounted
- RS485 Modbus Communications
- 1 DIN Module
- Digital Backlit Display
