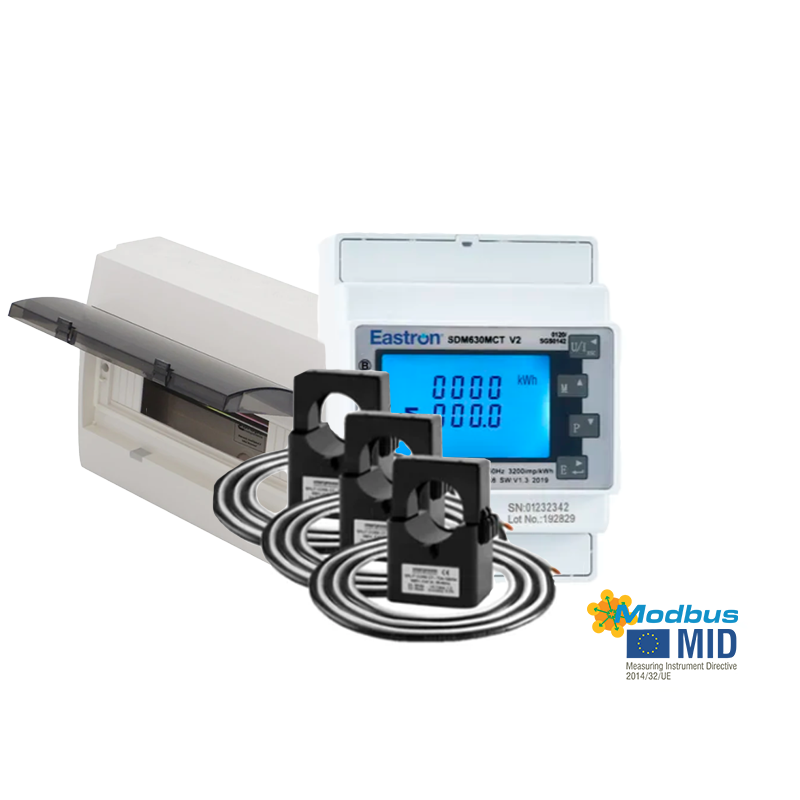

Meter Information:
- MID B&D Approved - 0120/SGS0150
- Single Phase (1P2W) or Three Phase (3P4W)
- Multifunction Meter (16 different parameters)
- CT Operated (1A or 5A secondary - settable)
- 230/400V AC
- RS485 Modbus RTU
- Dual Pulse Outputs built-in
- 4-DIN Module
- Digital Backlit Display
- Touch Screen Buttons
Enclosure Features:
- 4/8/12 WAY
- IP65 Weather Proof
- CE Approved
- ABS Enclosure with Polycarbonate Lid
- Suitable for Din Rail Mounted Electrical Distribution Products
CT Information:
- Split Core
- 100-250A (24mm² Aperture) 300-600A (36mm² Aperture)
- 5A Secondary Current
- 1m Fly Lead (2.5mm Wire)
- Accuracy Class 1
