Bundle: SDM630MCTE-MID With Three Phase Current Transformer

Vendor
Smart Process
Regular price
£169.00
Sale price
£169.00
Regular price
£189.00
Sold out
Unit price
per
Excluding VAT. Shipping calculated at checkout.

Product Features:

Meter Information:

  • MID B&D Approved - 0120/SGS0150

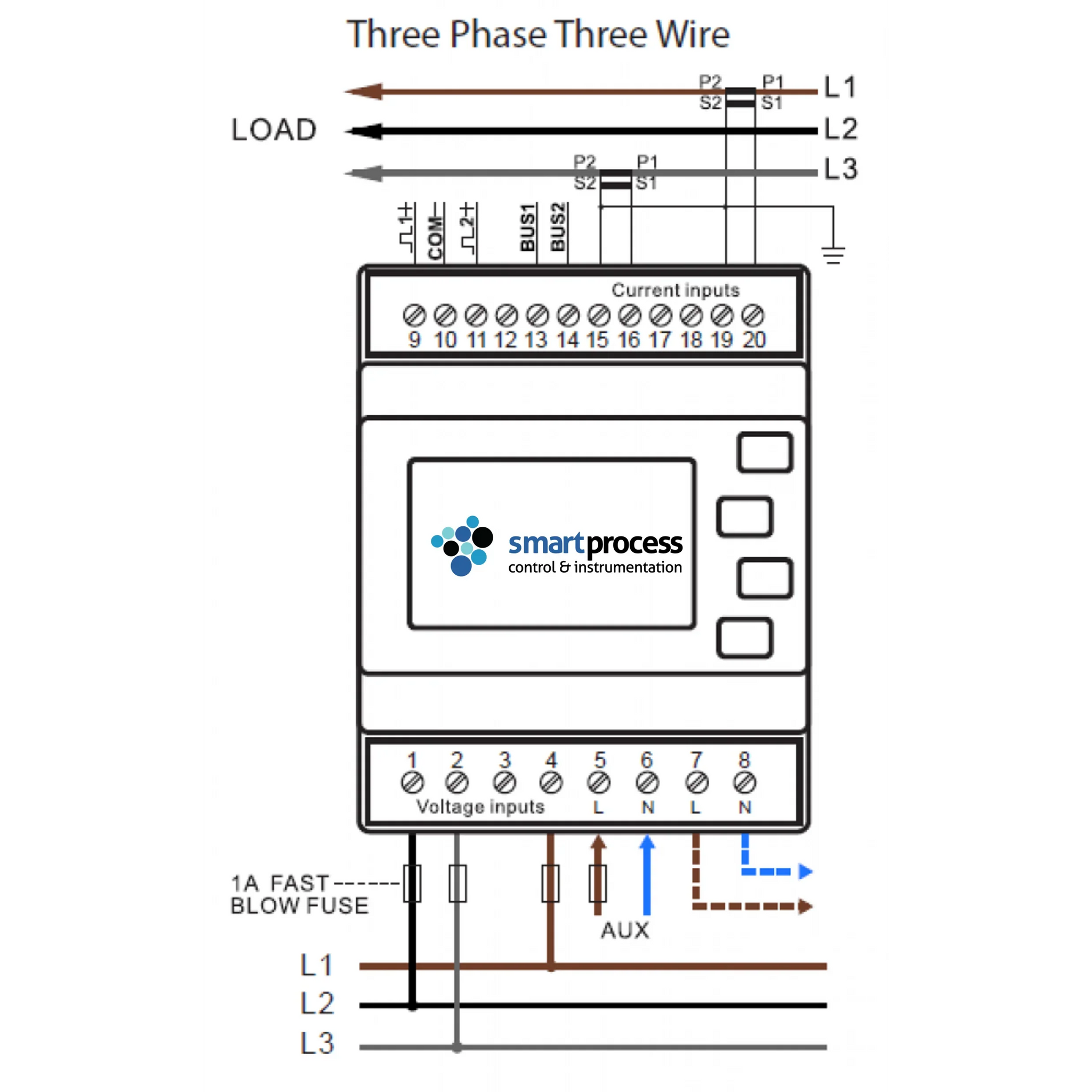

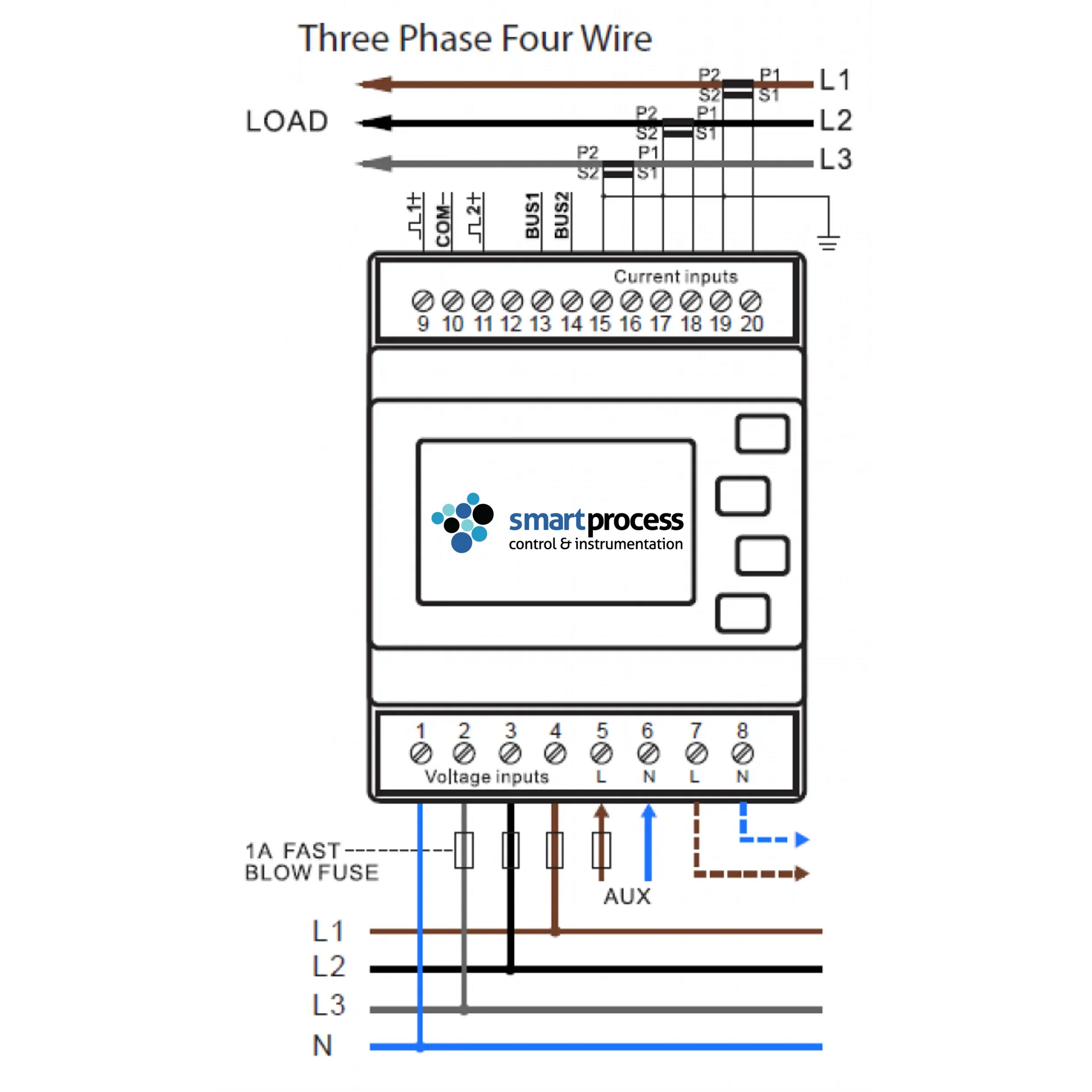

  • Single Phase (1P2W) or Three Phase (3P3W or 3P4W)
  • Multifunction Meter (16 different parameters)
  • CT Operated (1A or 5A secondary - settable)
  • 230/400V AC
  • RS485 Modbus RTU
  • Dual Pulse Outputs built-in
  • 4-DIN Module
  • Digital Backlit Display
  • Touch Screen Buttons

CT Information:

  • Split Core
  • 100-250A (24mm² Aperture) 300-600A (36mm² Aperture)
  • 5A Secondary Current
  • 1m Fly Lead (2.5mm Wire)
  • Accuracy Class 1

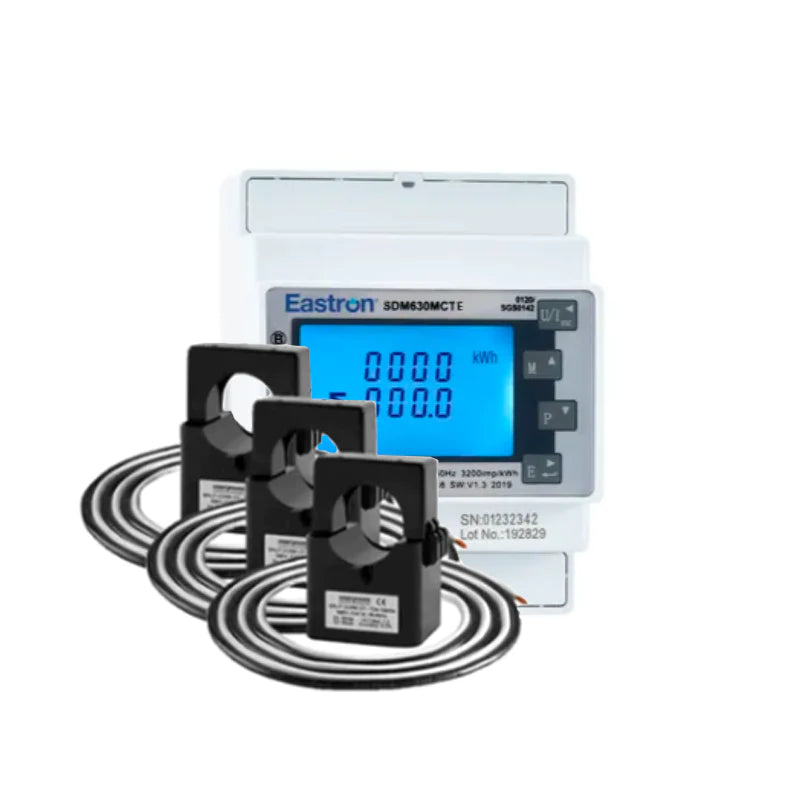

This bundle includes 1pc of Eastron SDM630MCTE-MID and 3pcs of Eastron T24 Current Transformer

You will need to confirm what Current Transformer ratio you require before checkout, as per the options section below.
