If you require a higher CT ratio please get in touch with us on 01268 203 444
PRODUCT FEATURES:
METER INFORMATION:

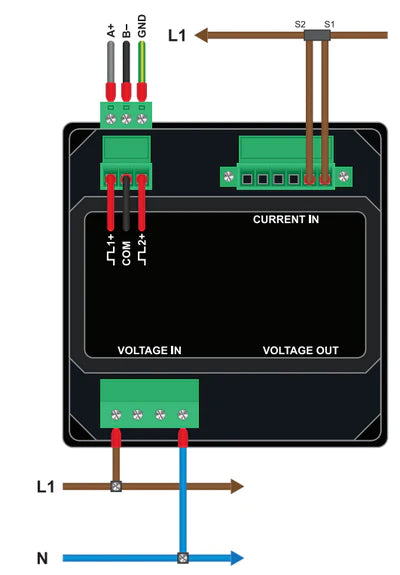

- Single Phase (1P2W) MID Certified
- Three Phase (3P3W) MID Certified

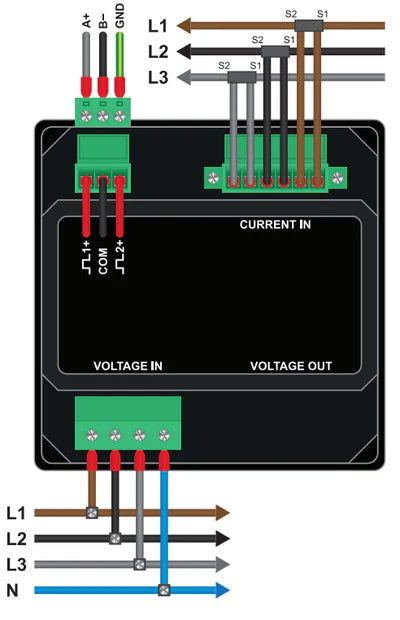

- Three Phase (3P4W) MID Certified
- Class 0.5s Accuracy
- Phase Sequence Detection
- Individual Harmonics upto 63rd
- -/1A CT Operated or -/5A CT Operated
- RS485 Modbus RTU
- Dual Pulse Outputs

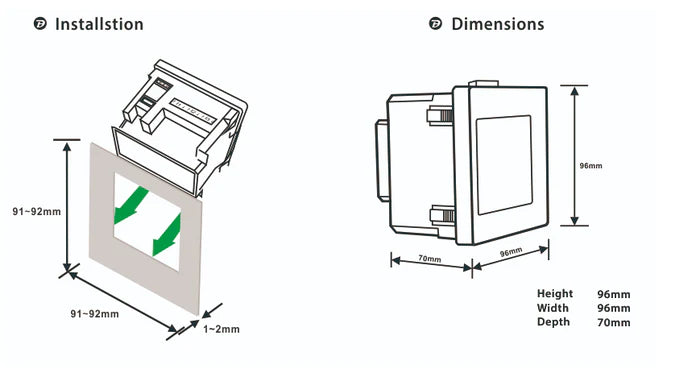

- 96mm² Panel Mounted (92mm² Cut Out)
- Digital Backlit Display and Touch Screen Buttons
CT Information:
- 1ph x 3pcs (to cover 3ph application)
- Split Core
- 100-250A (24mm² Aperture) 300-600A (36mm² Aperture)
- 5A Secondary Current
- 1m Fly Lead (2.5mm Wire)
- Accuracy Class 1

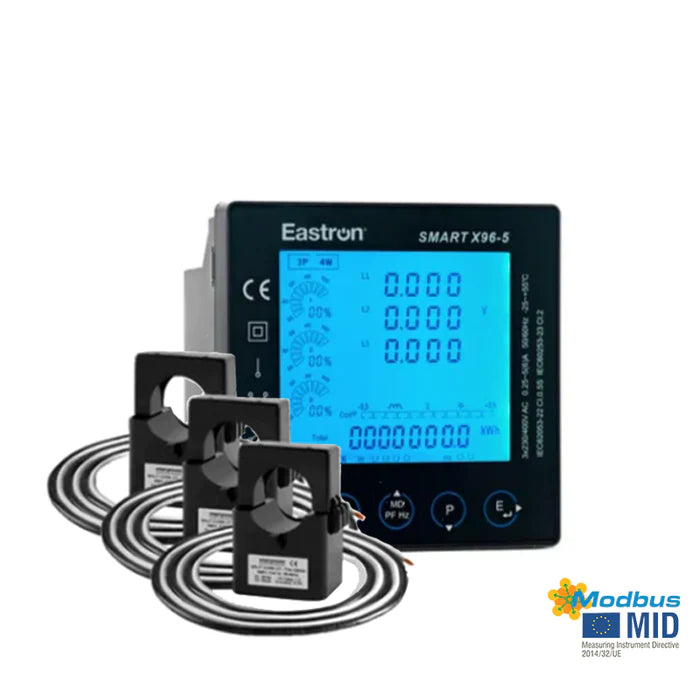

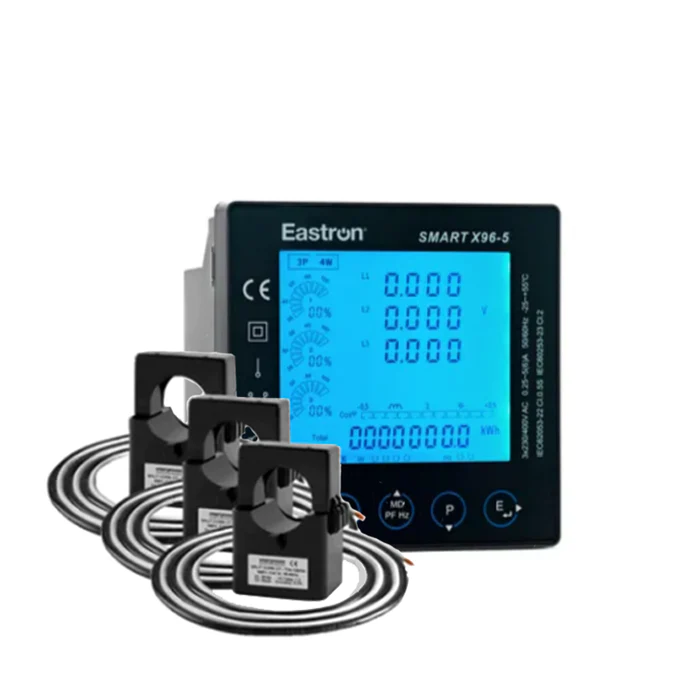

This bundle includes 1 x SMART-X96-5-MID and 3 x T24 5A Current Transformer
You will need to confirm what Current Transformer ratio you require before checkout, as per the options section below.
