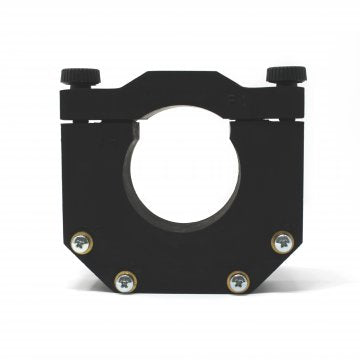

Two split-core current transformers with four or five built-in current ratios in one product. Suitable for use up to 400A using cable primaries. The split-core design allows installation into existing networks without disconnecting cables or busbar circuits.
Product Datasheet
Technical Specification
- Size 1
- Conforms to IEC 185/BS7626 and BSEN 60044-1/IEC 60044-1.
- Rated system voltage 0.72/3kV.
- Ambient temperature range -30ºC to 80ºC
- Insulation level 3kV for 1 minute
- Continuous current, 1.2 x rated current
-
Class :1
Measuring Range: 100A-200A-300A-400A/5A
VA: 100A 1.5VA, 200A 3VA, 300-400A 5VA
- Height: 125mm
- Width: 132mm
- Depth: 38mm
