M53J Current Transformer
M53J Current Transformer
  • Load image into Gallery viewer, M53J Current Transformer
  • Load image into Gallery viewer, M53J Current Transformer

M53J Current Transformer

Vendor
Crompton
Regular price
£10.00
Sale price
£10.00
Regular price
Sold out
Unit price
per

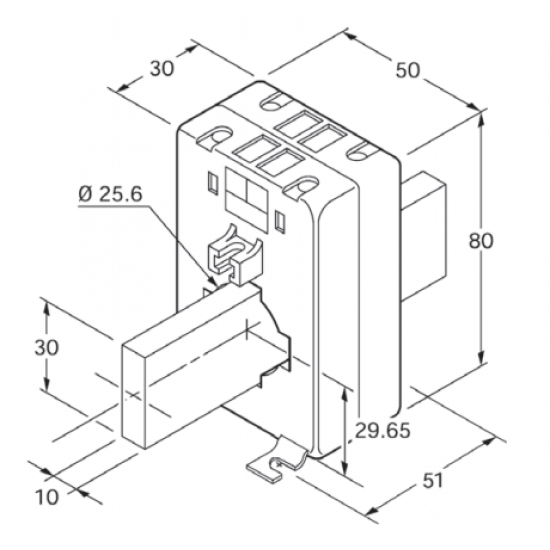

The M53J Range of Solid Core Current Transformers from Crompton Instruments work in conjunction with any 5A CT Operated Electricity Meters. You can use individual M53J CTs for Single Phase applications, you can also use several of these current transformers for Three Phase applications. The Aperture on this model accommodates 25mm² Cable, as well as 30mm x 10mm, 25mm x 15mm & 20mm x 20mm Busbar. The M53J is ideal for applications such as Distribution systems, Generator sets, Control Panels and Switchgear.

Technical Specification

  • 25mm² Aperture
  • 30mm x 10mm Busbar Aperture
  • 25mm x 15mm Busbar Aperture
  • 20mm x 20mm Busbar Aperture
  • 100-400A Primary Current
  • 5A Secondary Current
  • Secondary M4 Screw Terminals
  • Accuracy Class 0.5, 1 or 3
  • Busbar or DIN Rail Mounted
