M63N Current Transformer
M63N Current Transformer
  • Load image into Gallery viewer, M63N Current Transformer
  • Load image into Gallery viewer, M63N Current Transformer

M63N Current Transformer

Vendor
Crompton
Regular price
£12.50
Sale price
£12.50
Regular price
Sold out
Unit price
per

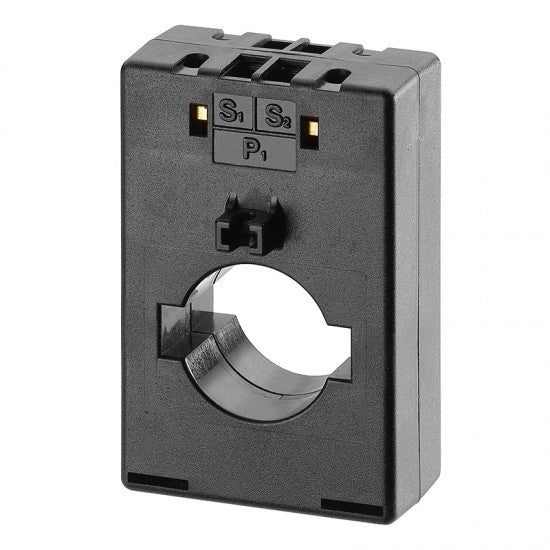

The M63N Range of Solid Core Current Transformers from Crompton Instruments work in conjunction with any 5A CT Operated Electricity Meters. You can use individual M63N CTs for Single Phase applications, you can also use several of these current transformers for Three Phase applications. The Aperture on this model accommodates 32mm² Cable, as well as 40mm x 10mm, Busbar. The M63N is ideal for applications such as Distribution systems, Generator sets, Control Panels and Switchgear.

Technical Specification

  • 32mm² Aperture
  • 40mm x 10mm Busbar Aperture
  • 200-800A Primary Current
  • 5A Secondary Current
  • Secondary M4 Screw Terminals
  • Accuracy Class 0.5, 1 or 3
  • Busbar or DIN Rail Mounted
