M93L Current Transformer
M93L Current Transformer
  • Load image into Gallery viewer, M93L Current Transformer
  • Load image into Gallery viewer, M93L Current Transformer

M93L Current Transformer

Vendor
Crompton
Regular price
£17.70
Sale price
£17.70
Regular price
Sold out
Unit price
per

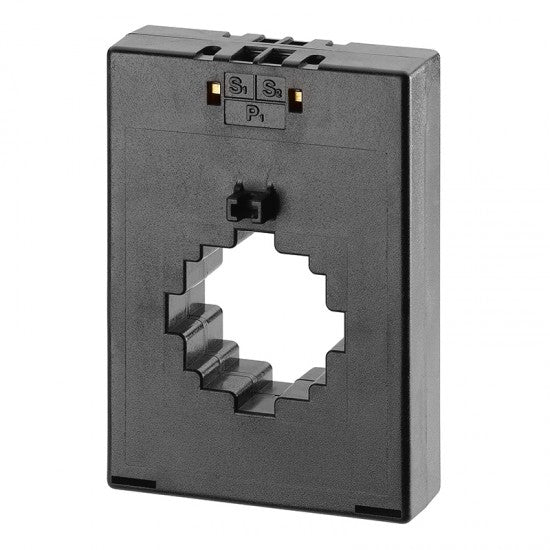

The M93L Range of Solid Core Current Transformers from Crompton Instruments work in conjunction with any 5A CT Operated Electricity Meters. You can use individual M93L CTs for Single Phase applications, you can also use several of these current transformers for Three Phase applications. The Aperture on this model accommodates 42mm² Cable, as well as 50mm x 10mm & 40mm x 30mm Busbar. The M93L is ideal for applications such as Distribution systems, Generator sets, Control Panels and Switchgear.

Technical Specification

  • 42mm² Aperture
  • 50mm x 10mm Busbar Aperture
  • 40mm x 30mm Busbar Aperture
  • 400-1000A Primary Current
  • 5A Secondary Current
  • Secondary M4 Screw Terminals
  • Accuracy Class 0.5, 1 or 3
  • Busbar or DIN Rail Mounted
