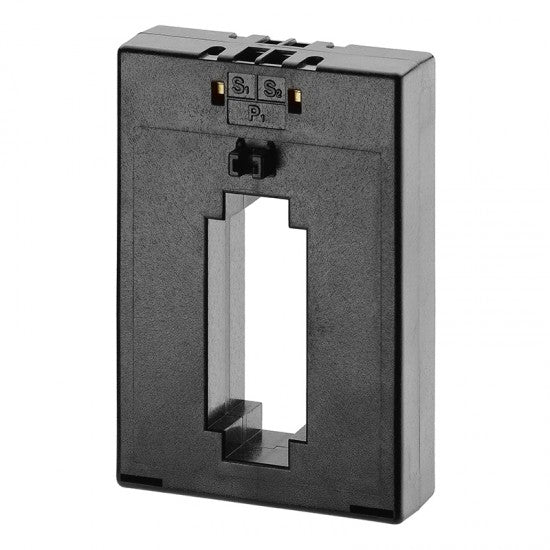

M93S Current Transformer
M93S Current Transformer
  • Load image into Gallery viewer, M93S Current Transformer
  • Load image into Gallery viewer, M93S Current Transformer

M93S Current Transformer

Vendor
Crompton
Regular price
£29.00
Sale price
£29.00
Regular price
Sold out
Unit price
per
Excluding VAT. Shipping calculated at checkout.

The M93S Range of Solid Core Current Transformers from Crompton Instruments work in conjunction with any 5A CT Operated Electricity Meters. You can use individual M93S CTs for Single Phase applications, you can also use several of these current transformers for Three Phase applications. The Aperture on this model accommodates 60mm x 30mm Busbar. The M93S is ideal for applications such as Distribution systems, Generator sets, Control Panels and Switchgear.

Technical Specification

  • 76.5mm x 19mm Busbar Aperture
  • 60mm x 30mm Busbar Aperture
  • 800-1600A Primary Current
  • 5A Secondary Current
  • Secondary M4 Screw Terminals
  • Accuracy Class 0.5, 1 or 3
  • Busbar or DIN Rail Mounted
