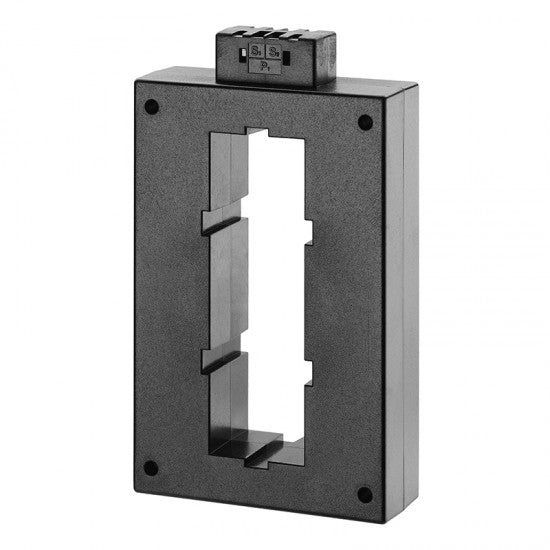

MC5T Current Transformer

The MC5T Range of Solid Core Current Transformers from Crompton Instruments work in conjunction with any 5A CT Operated Electricity Meters. You can use individual MC5T CTs for Single Phase applications, you can also use several of these current transformers for Three Phase applications. The Aperture on this model accommodates 160mm x 50mm Busbar. The MC5T is ideal for applications such as Distribution systems, Generator sets, Control Panels and Switchgear.

Technical Specification

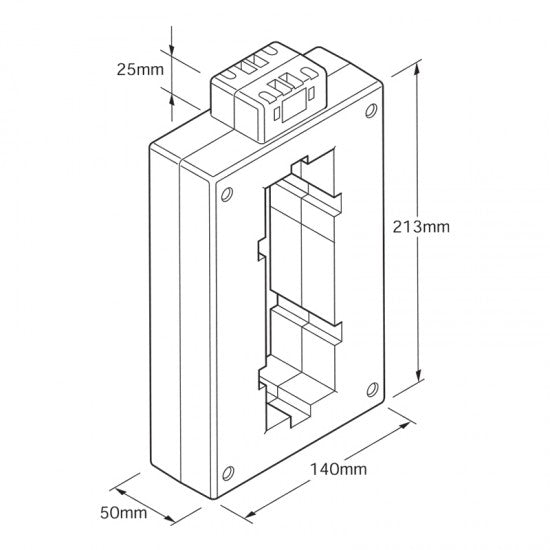

• 160mm x 50mm Busbar Aperture
• 2500-6000A Primary Current
• 5A Secondary Current
• Secondary M4 Screw Terminals
• Accuracy Class 0.5, 1 or 3
• Busbar or DIN Rail Mounted
