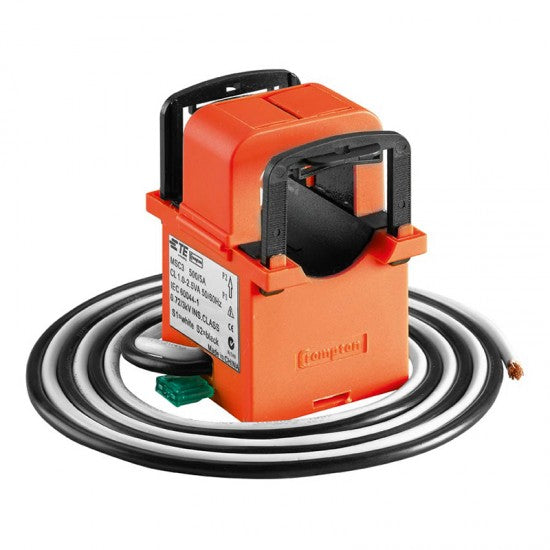

The MSC3 Range of Split Core Current Transformers from Crompton Instruments work in conjunction with any 5A CT Operated Electricity Meters. Due to the style of these Split Core Current transformers, you can easily install them without needing to break any conductors. They also come with a shorting link for safe installation (This will need removing once installed). You can use individual MSC3 CTs for Single Phase applications, you can also use several of these current transformers for Three Phase applications. The Aperture on this model accommodates 28mm² Cable. The MSC3 is ideal for applications such as Distribution systems, Generator sets, Control Panels and Switchgear.
Includes 1meter Cable
Technical Specification
- Split Core
- Safety Shorting Fuse
- 28mm² Aperture
- 300-500A Primary Current
- 5A Secondary Current
- 1m Fly Lead (2.5mm Wire)
- Accuracy Class 1
- DIN Rail Mounted & Cable Clamps
