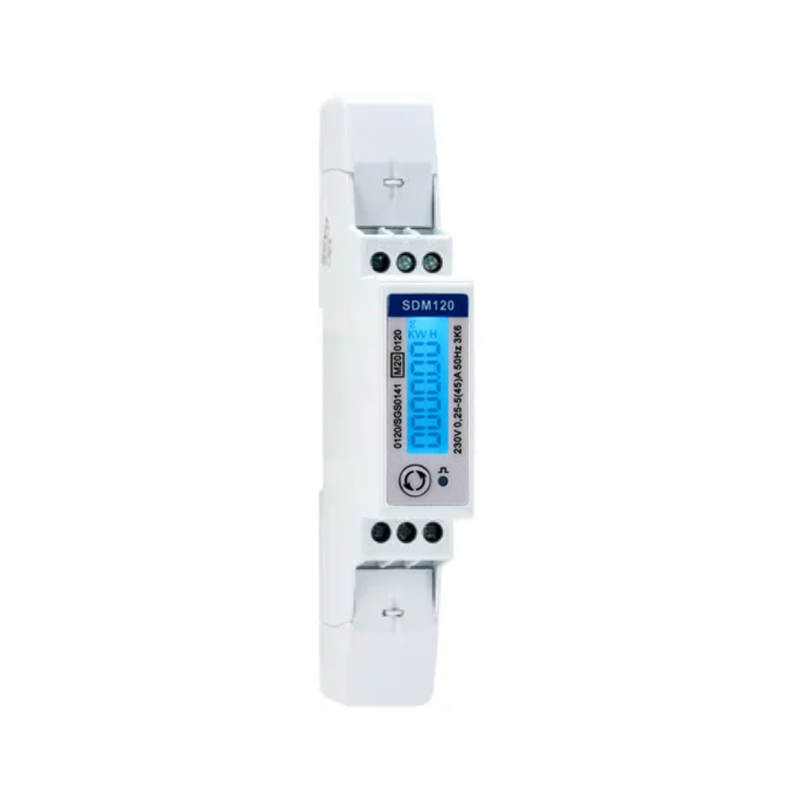

The SDM120-MBUS-MID is a Single Phase Digital Power Meter that measures a range of parameters in a 45A AC Circuit, removing the need for additional current transformers. This particular meter has proven to be very popular due to how cost-effective it is. Unlike other meters available on the market, this model has Pulse and MBUS communications built in, eradicating the requirement of purchasing extra modules. The SDM120 Series is housed in a 1-DIN (17.5mm) case meaning it is compact and space-saving. This specific model measures Voltage, Current, Power Factor, Active Power, Reactive Power, Apparent Power, Total Active Energy, Import & Export Active Energy.
We have invested in MID B&D certification for the SDM120-MBUS-MID, this proves the accuracy and quality of the product and allows it to be used for Billing Applications. As of April 2016, MID approved Meters are the only legal option when the measurements are to be used for billing. All of our MID approved meters are certified here in the UK.
- MID B&D Approved - 0120/SGS0221
- Single Phase (1P2W)
- 45A AC (45A Direct Connected)
- 230V AC
- Mbus Communication
- Dual Pulsed Outputs

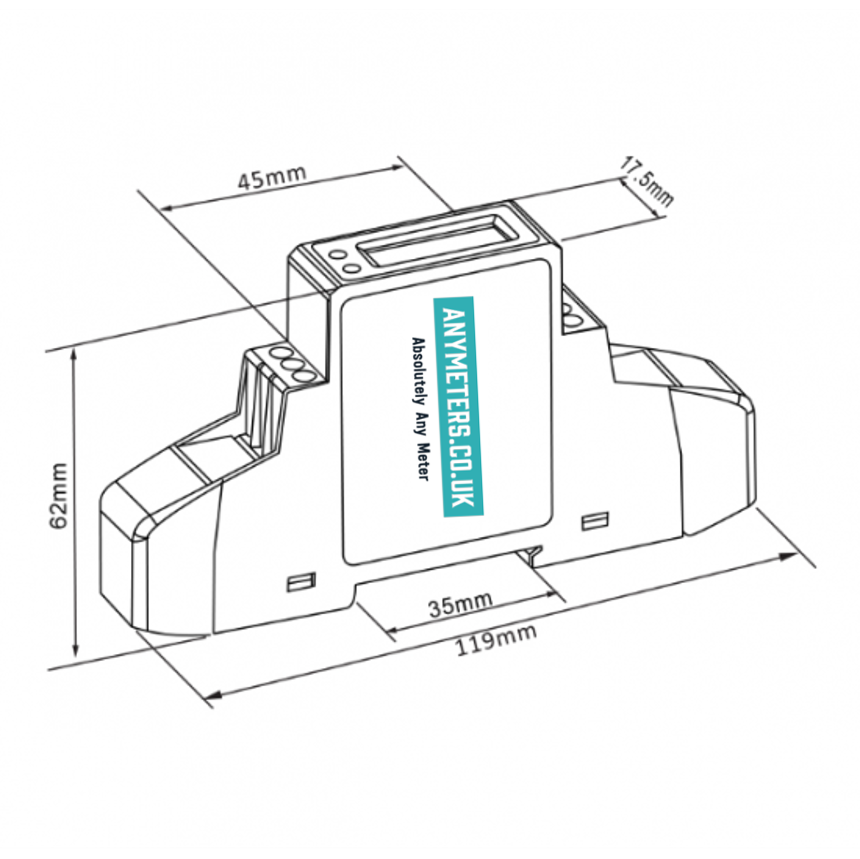

- 1-DIN Module
- Digital Backlit Display
- Multi-functional parameters
