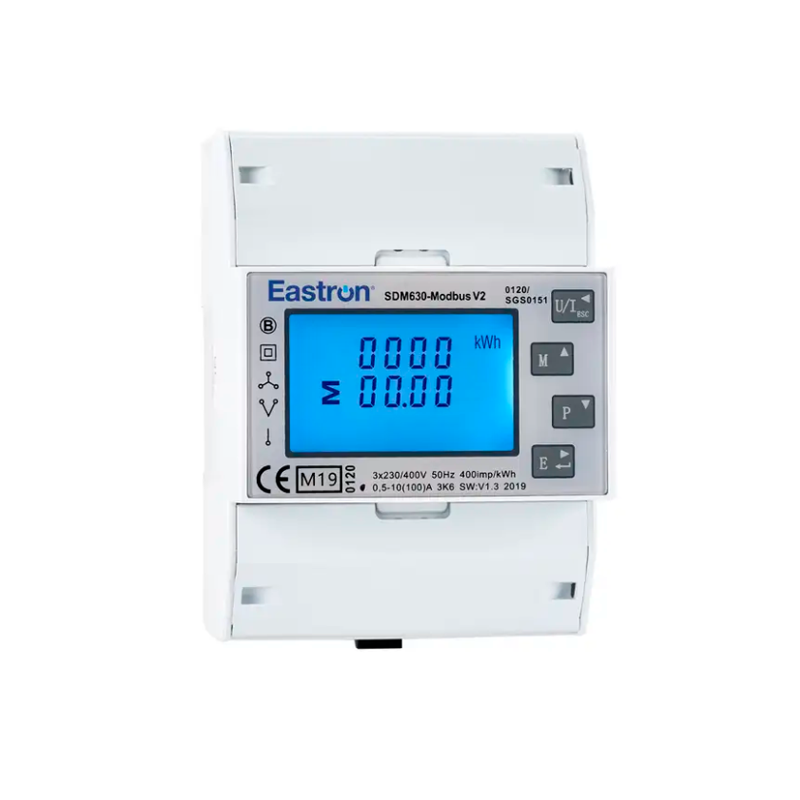

Eastron SDM630 Mod MID Three Phase Power Analyser

Vendor
Eastron
Regular price
£169.00
Sale price
£169.00
Regular price
Sold out
Unit price
per

The SDM630-MOD-MID is a Three Phase Digital Power Meter that measures a range of parameters in a 100A AC Circuit, removing the need for additional current transformers. This particular meter has proven to be very popular due to the detailed measurements it can provide, such as Power Factor, Max Demand Power & Hours Run. Unlike other meters available on the market, this model has Pulse and Modbus communications built in, eradicating the requirement of purchasing extra modules. The SDM630 Series is housed in a 4-DIN (72mm) case meaning it is compact and space-saving. This specific model measures Voltage, Voltage THD, Current, Max Demand Current, Current THD, Frequency, Power Factor, Max Demand Power, Active Power,  Reactive Power, Apparent Power, Total Active Energy, Import & Export Active Energy, Total Reactive Energy, Import & Export Reactive Energy.

Technical Specification

  • MID B&D Approved
  • Single Phase (1P2W) or Three Phase (3P3W or 3P4W)
  • Multifunction
  • 100A AC
  • 230/400V AC
  • RS485 Modbus RTU
  • Dual Pulse Outputs

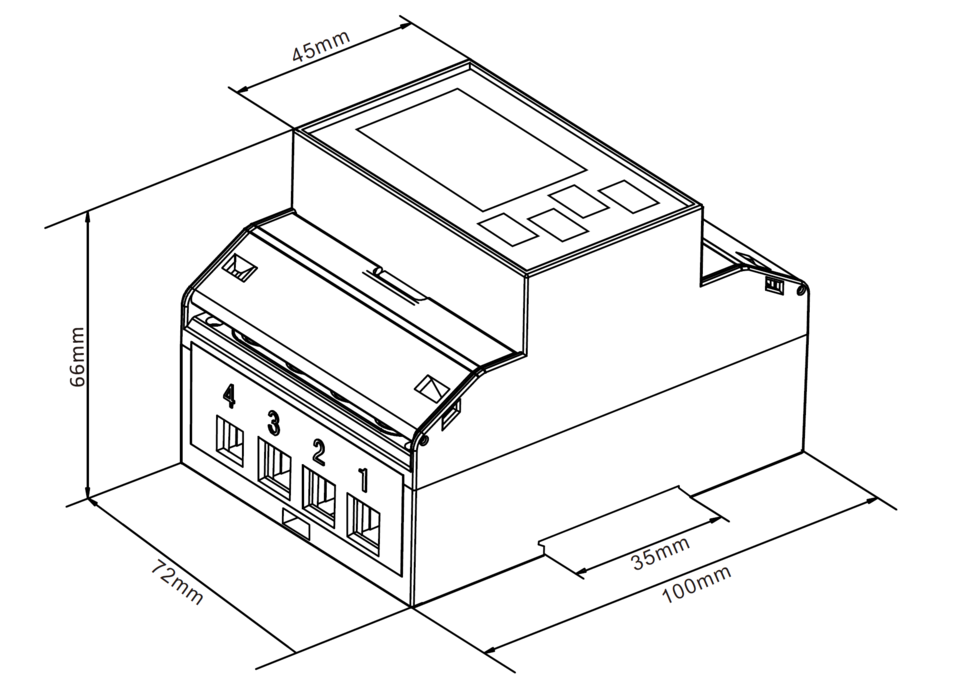

  • 4-DIN Module
  • Digital Backlit Display
  • Touch Screen Buttons
