T24 200AMP/ 0.333MV Split Core Current Transformer

Vendor
Eastron
Regular price
£30.00
Sale price
£30.00
Regular price
Sold out
Unit price
per
Excluding VAT. Shipping calculated at checkout.

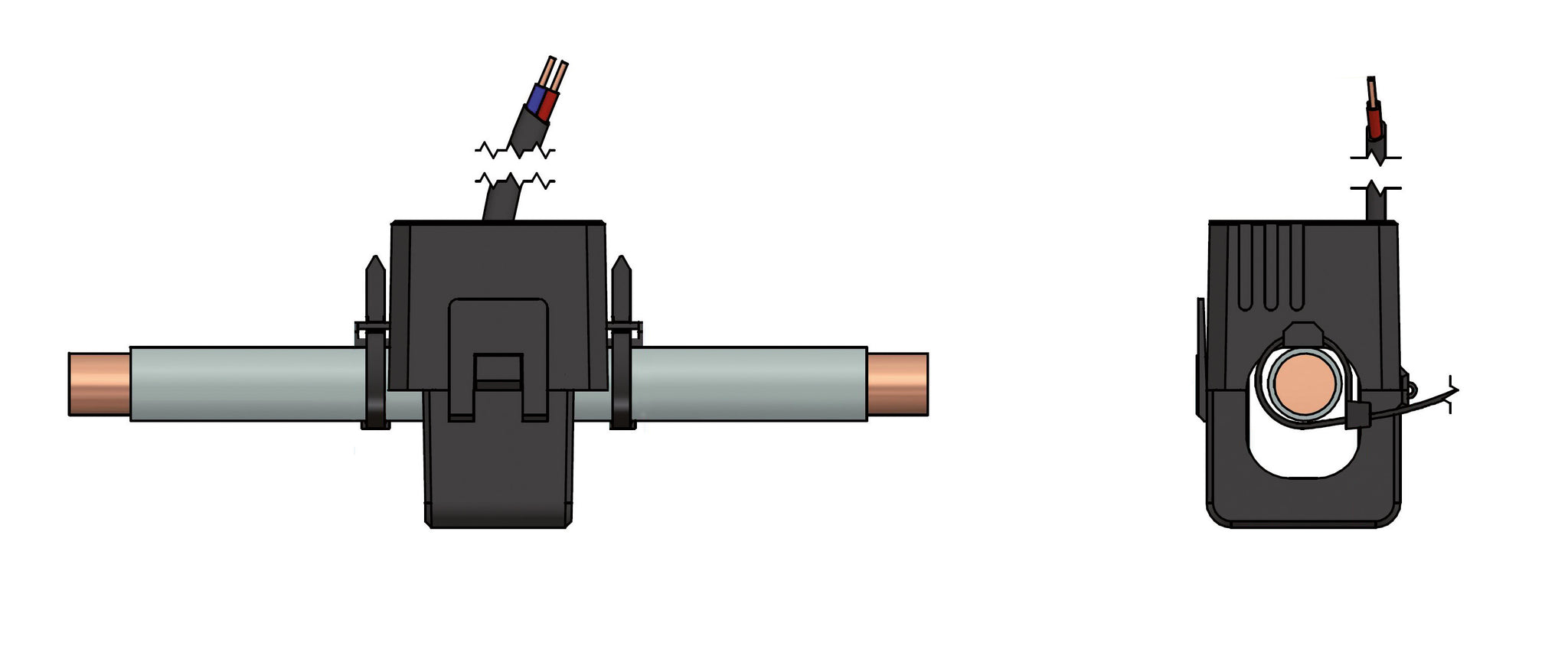

This particular T24 Split Core Current Transformer works in conjunction with any 0.333mV CT Operated Electricity Meters. Due to the style of these Split Core Current transformers, you can easily install them without needing to break any conductors. You can use individual T24 CTs for Single Phase applications, you can also use 3pcs of these current transformers for Three Phase applications. The Aperture on this model accommodates a 24mm² Cable.

The T24 is ideal for applications such as Distribution systems, Generator sets, Control Panels, and Switchgear.

Technical Specification

  • Split Core

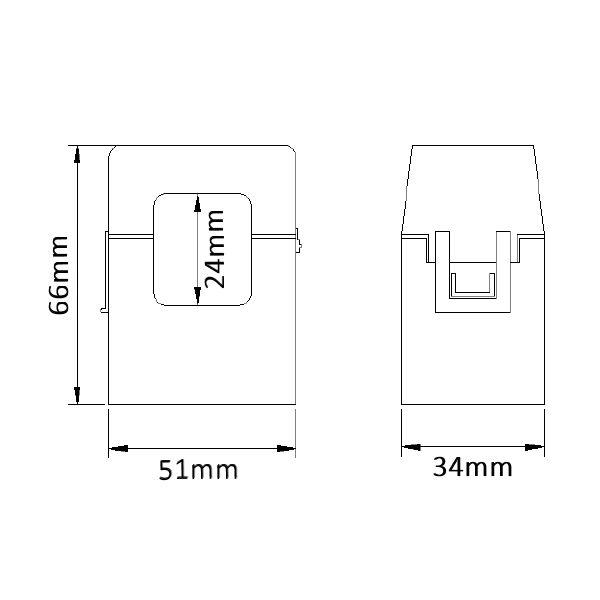

  • 24mm² Aperture
  • 200A Primary Current
  • 0.333mV Secondary Current
  • 1m Fly Lead (2.5mm Wire)
  • Accuracy Class 1
