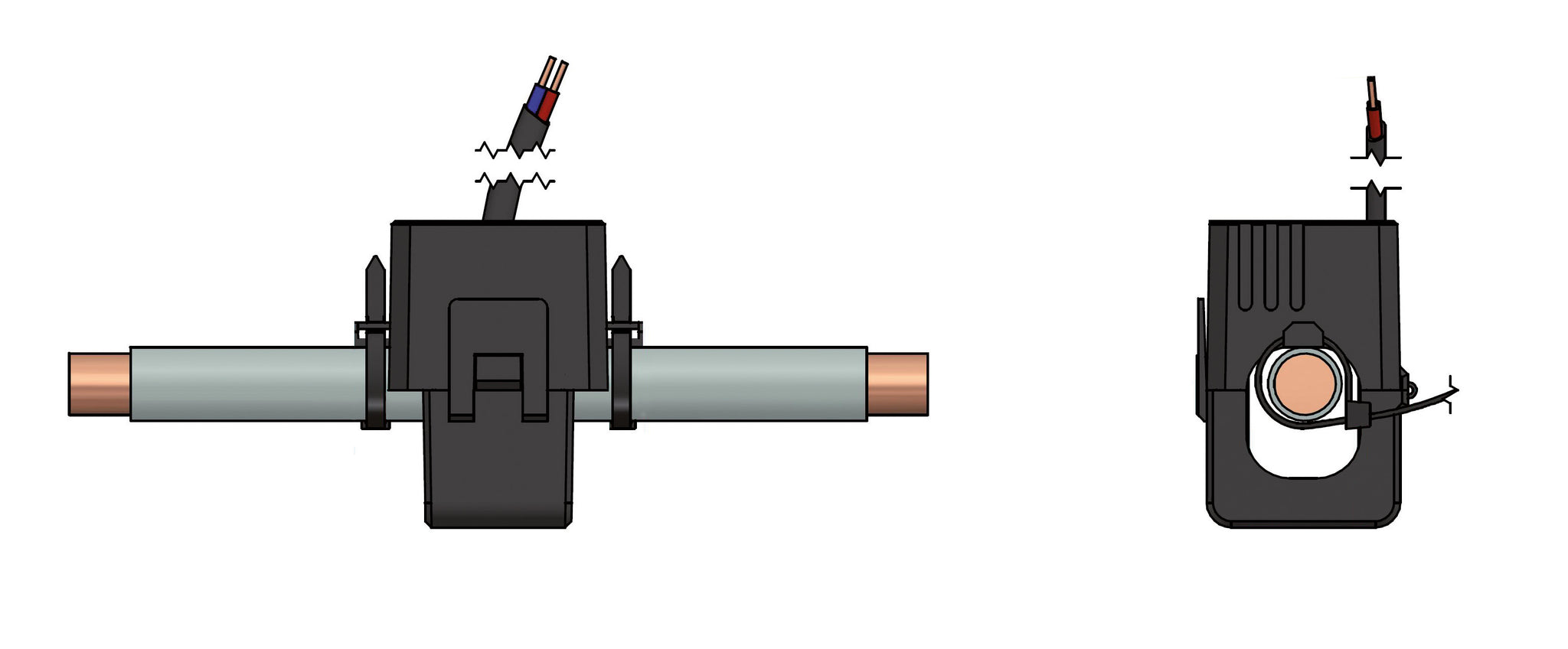

The T36 Range of Split Core Current Transformers work in conjunction with any 5A CT Operated Electricity Meters. Due to the style of these Split Core Current transformers, you can easily install them without needing to break any conductors. You can use individual T36 CTs for Single Phase applications, you can also use several of these current transformers for Three Phase applications. The Aperture on this model accommodates 36mm² Cable.
The T36 is ideal for applications such as Distribution systems, Generator sets, Control Panels and Switchgear.
Technical Specification
- Split Core

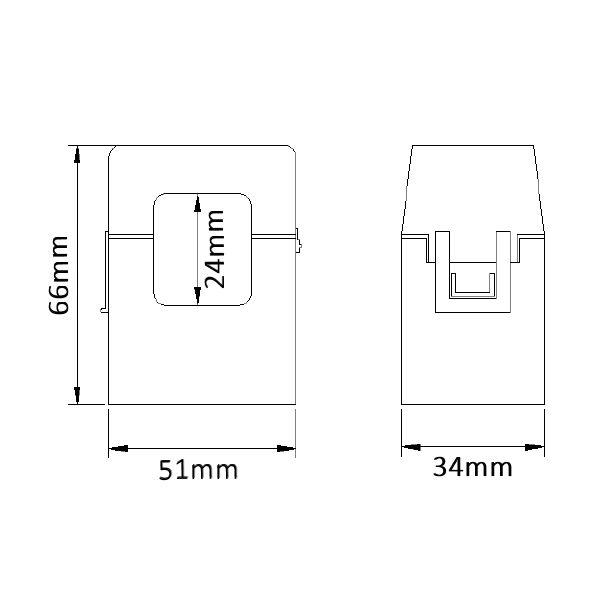

- 36mm² Aperture
- 300-600A Primary Current
- 5A Secondary Current
- 1m Fly Lead (2.5mm Wire)
- Accuracy Class 1
