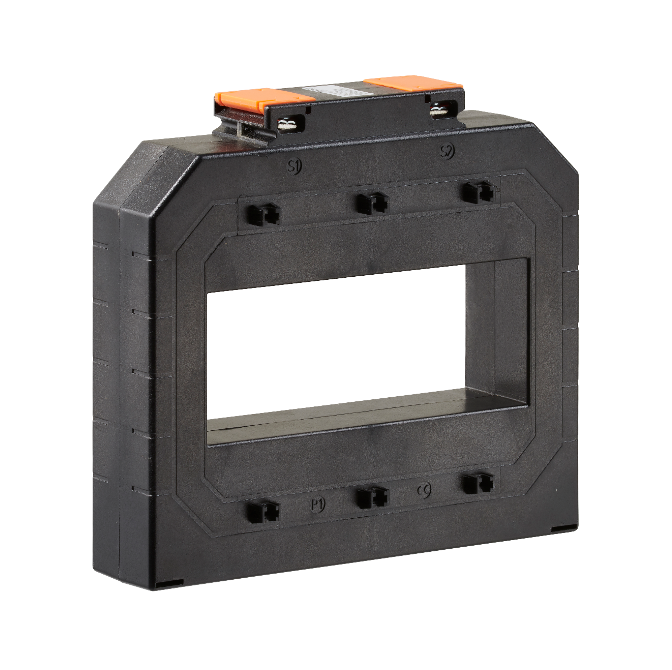

XL10B Current Transformer
XL10B Current Transformer
  • Load image into Gallery viewer, XL10B Current Transformer
  • Load image into Gallery viewer, XL10B Current Transformer

XL10B Current Transformer

Vendor
Crompton
Regular price
£74.20
Sale price
£74.20
Regular price
Sold out
Unit price
per
Excluding VAT. Shipping calculated at checkout.

PRODUCT FEATURES:

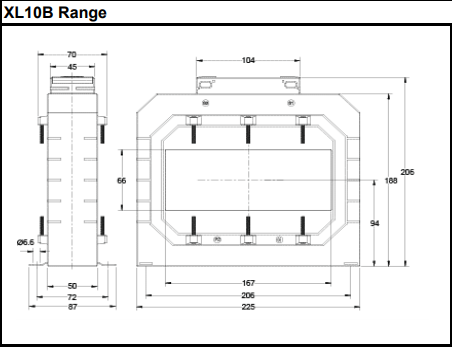

  • 167 x 66mm Aperture
  • 1000-75000A Primary Current
  • 5A Secondary Current
  • Secondary M4 Screw Terminals
  • Accuracy Class 0.5, 1 or 3

The XL10B Range of Solid Core Current Transformers work in conjunction with any 5A CT Operated Electricity Meters. You can use individual XL10B CTs for Single Phase applications, you can also use three of these current transformers for Three Phase applications. The XL10B is ideal for applications such as Distribution systems, Generator sets, Control Panels, and Switchgear.
