XL4D Current Transformer

Vendor
Crompton
Regular price
£35.00
Sale price
£35.00
Regular price
Sold out
Unit price
per
Excluding VAT. Shipping calculated at checkout.

PRODUCT FEATURES:

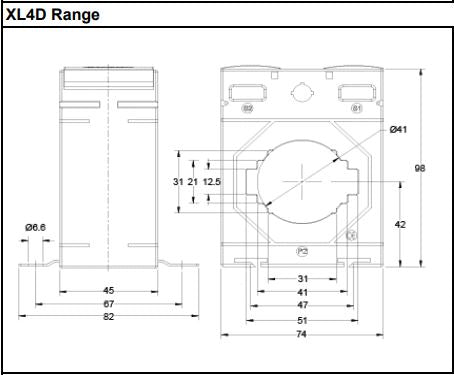

  • Cable or Busbar Aperture51 x 12.5 mm - 41 x 21 mm - 31 x 31 mm
  • 100-1000A Primary Current
  • 5A Secondary Current
  • Secondary M4 Screw Terminals
  • Accuracy Class 0.5, 1 or 3

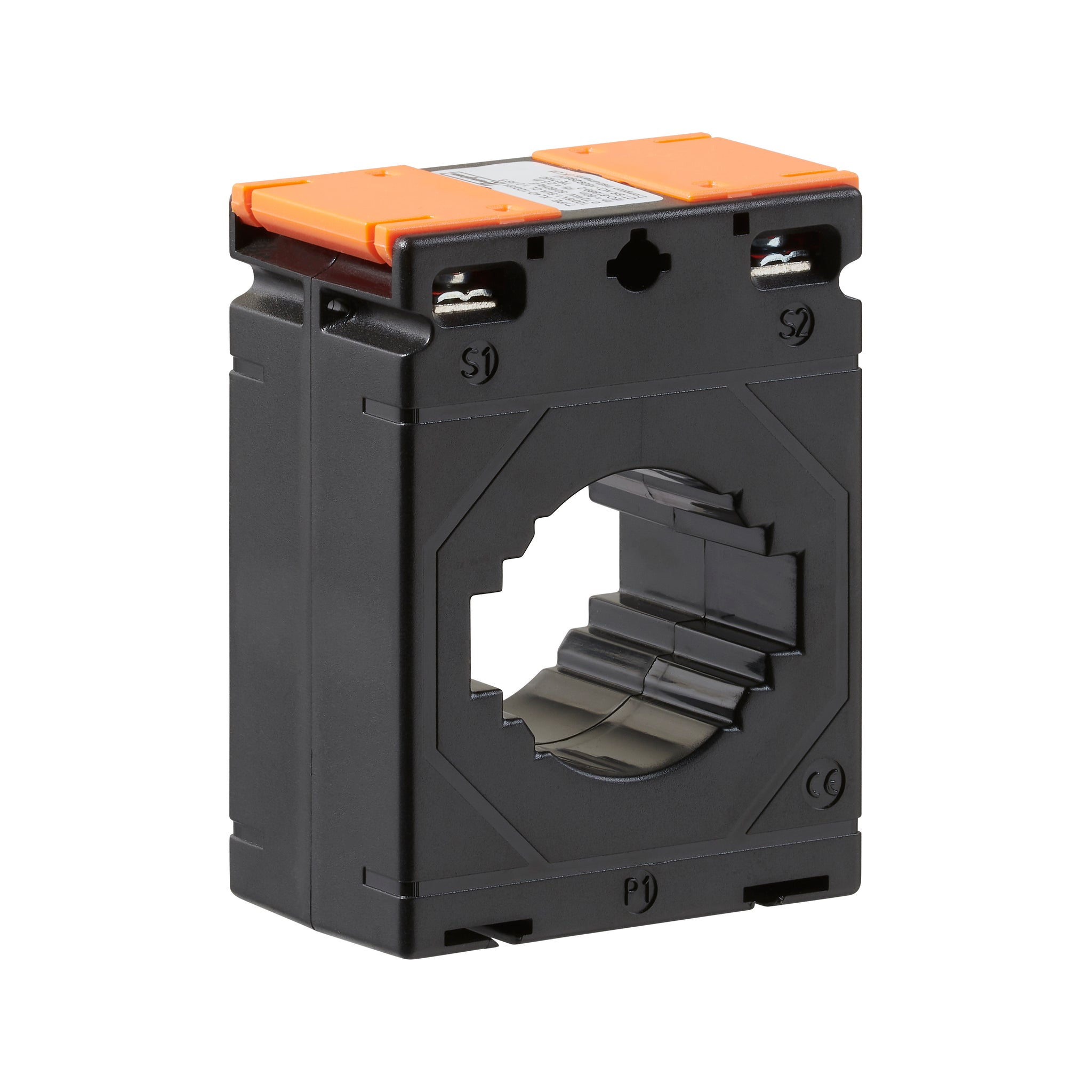

The XL4D Range of Solid Core Current Transformers work in conjunction with any 5A CT Operated Electricity Meters. You can use individual XL4D CTs for Single Phase applications, you can also use three of these current transformers for Three Phase applications. The XL4D is ideal for applications such as Distribution systems, Generator sets, Control Panels and Switchgear.
