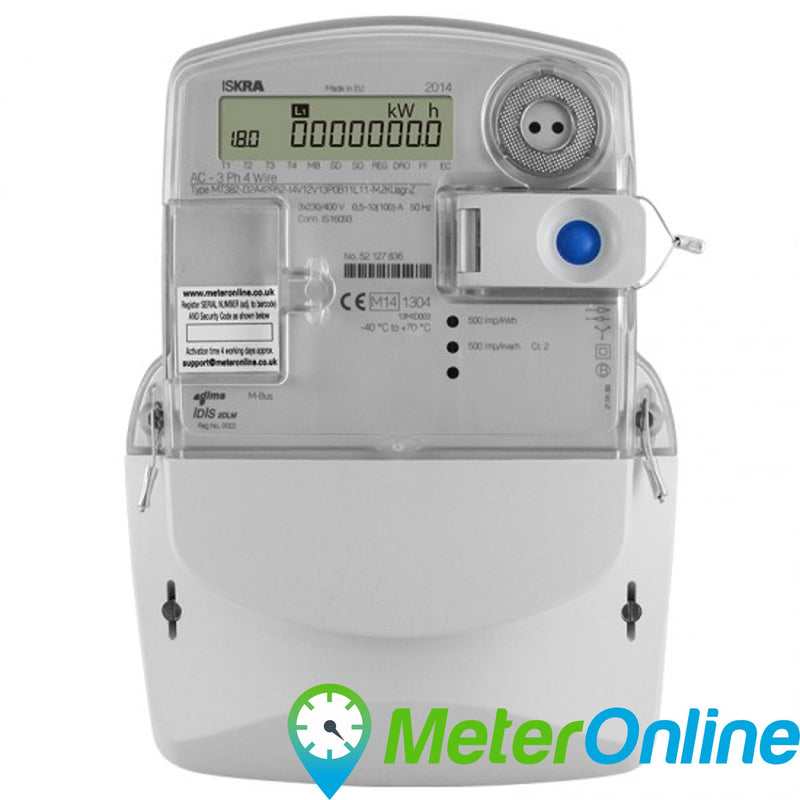

Iskra - MT382 Three Phase Direct connected Check Meter ( Meter Online )

 please get in touch with us on 01268 203 444 to discuss CT Ratio

Why order with Anymeters?

•     Fast Next-Day Delivery on stocked products you need quickly.
•     1PM Cut-Off for Same-Day Dispatch, clear timelines, no guesswork.
•     Free Delivery on Orders Over £500; added value for larger projects.
•     Hassle-Free Returns Process with quick pre-authorisation support.
•     Easy Damage Claims, notify us within 5 days with photos for swift help.

The ME382 is targeted at deregulated energy markets and enables provision of an AMR system. It is a three phase meter designed for use in a residential application. The meter incorporates a fully integrated GSM/GPRS modem that can be exchanged with integrated RS485 communications interface for block installations. The meter is approved according to IEC 62052-11, IEC 62053-21 and IS0 9001.

Technical Specification

• 120A Direct connected
• Three Phase Networks
• MID Approved
• Pulsed Output on request
• Import/Export Energy
• Tariff control input
• Small size modern design
• Intergrated GSM/GPRS Modem
• Cost Effective
• Accuracy class: 2 or 1
• Voltage range: 1.15 Un
• Max. current: 6A (5A ct operated)
• Reference voltage: 3x230/400V
• Reference frequency: 50/60Hz
• Operating temp. range: -25 to+60° C
• Extended temp. range:-40 to +70° C
• Storage temperature: -40 to+85° C
• Self-consumption current  0.5VA
