Smart Process SDM120CT-MOD MID Single Phase Power Analyser

Why order with Anymeters?

•     Fast Next-Day Delivery on stocked products you need quickly.
•     1PM Cut-Off for Same-Day Dispatch, clear timelines, no guesswork.
•     Free Delivery on Orders Over £500; added value for larger projects.
•     Hassle-Free Returns Process with quick pre-authorisation support.
•     Easy Damage Claims, notify us within 5 days with photos for swift help.

Current Transformer Sold Separately

Please confirm if you need any parameters set including: Modbus ID, Parity, Pulse Rate, Baudrate, Stop bits etc

Product Features:

• Single Phase 5A current transformer operated
• MID Certified (B and D)
• Bi-directional measurement for kW and kWh
• Configurable pulsed output (Import, Export, Nett kWh)

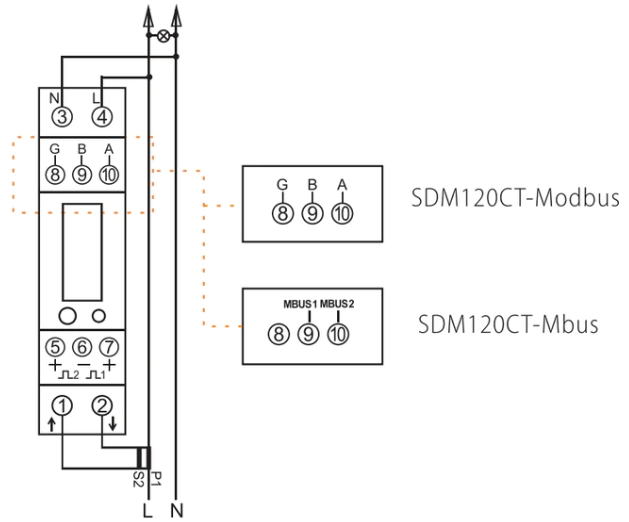

• RS485 Modbus Communications
• Multi Parameter measurements
• Simple set up and operation

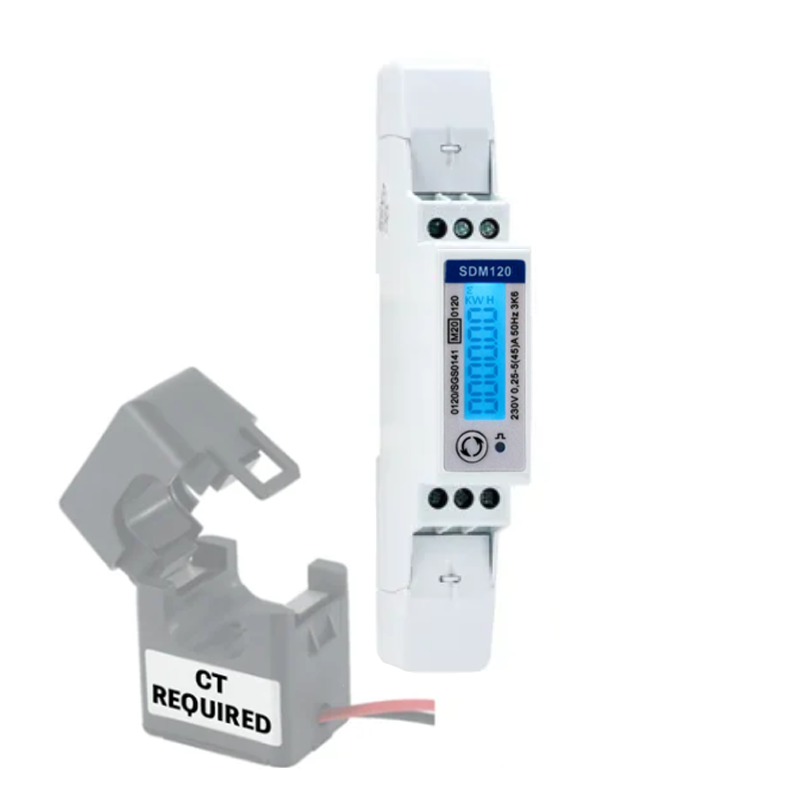

The SDM120CT energy-meter “with a white back-lighted LCD screen for prefect reading” are used to measure single-phase like residential, utility and Industrial application. The unit measures and displays various important electrical parameters, and provide an RS485 Modbus communication port for remote reading and monitoring. Bi-directional energy measurement makes the unit a good choice for solar PV energy metering. The compact design and din rail installation provides a easy and economical solution for your metering demand.

The SDM120CT-MID Approved Single Phase digital power meter works in conjunction with 5Amp Current Transformer. This meter has been MID B&D Certified by SGS UK, proving both its accuracy and quality. This certification allows this model to be used for any sub-billing applications and unlike other alternatives, this meter is housed in a 1 Module DIN rail case, meaning it takes up very little space.

Click here For Product Datasheet
