Products Features:
- Split Core
- Single Phase

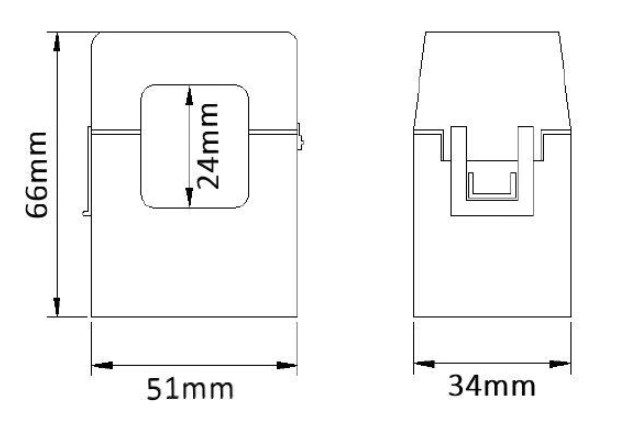

- 24mm² Aperture
- 100-250A Primary Current
- 5A Secondary Current
- 1m Fly Lead (2.5mm Wire)
- Accuracy Class 1

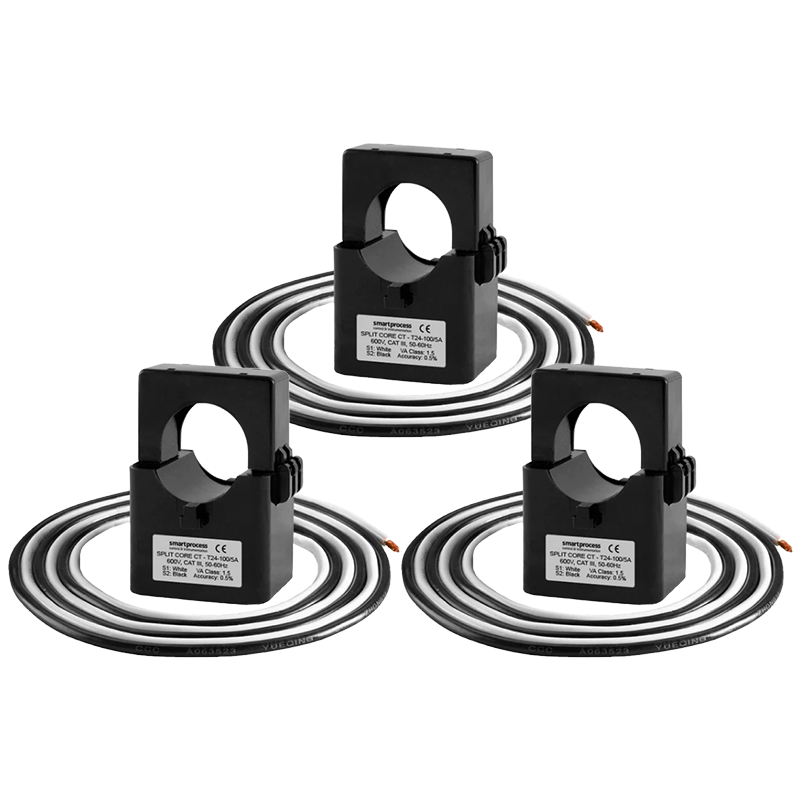

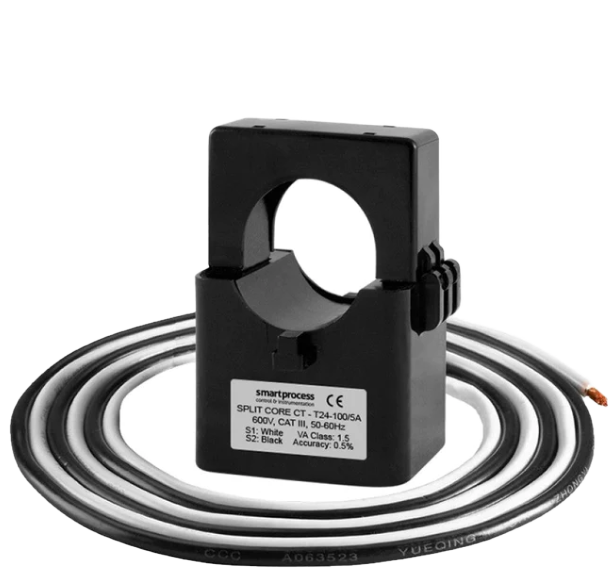

The T24 Range of Split Core Current Transformers work in conjunction with any 5A CT Operated Electricity Meters. Due to the style of these Split Core Current transformers, you can easily install them without needing to break any conductors. These three pieces of current transformers are perfect for Three Phase applications. The aperture on this model accommodates 24mm² Cable. The T24 is ideal for applications such as Distribution systems, Generator sets, Control Panels, and Switchgears
