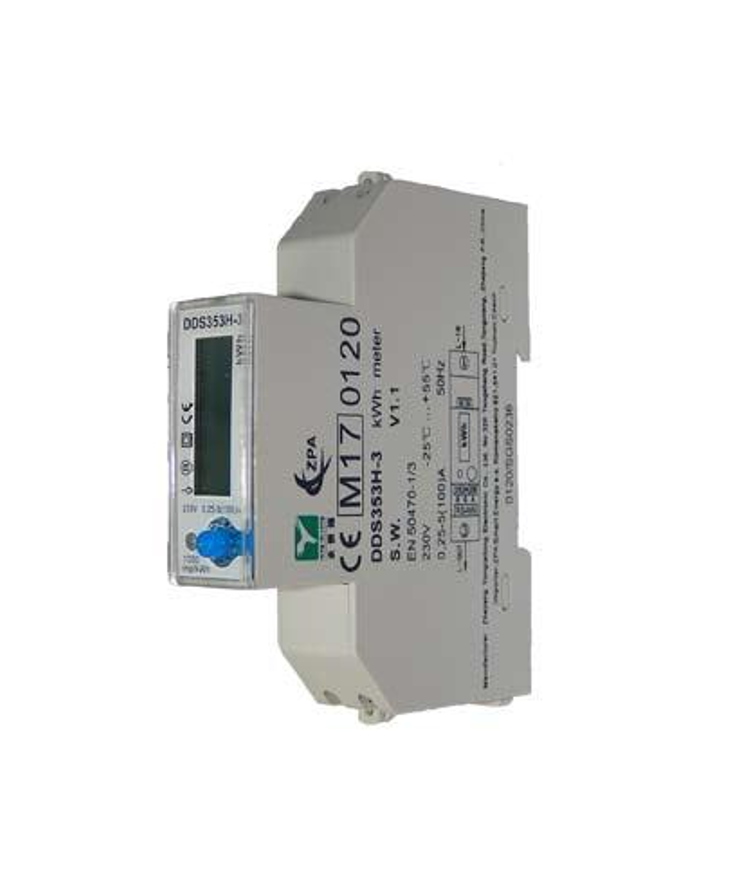

The DDS353H-1 is the ideal choice for cost-effective sub-billing with MID Certification, easy housing (1-DIN) and on-screen kWh display (LCD).
1 Built-in pulse output as standard
Technical Specification
- MID Approved
- Housing: 1-DIN Module
- Voltage: 230V ± 20%
- Current: (5) 100A
- Accuracy Class: B
- Standard: EN50470-1 / EN50470-3
- Frequency: 50Hz ±10%
- Pulse output
- Display: LCD 5+2= 99999.99kW
- Power Consumption: ≤8VA ≤0.4W
- Temperature Range: -25⁰C……+55⁰C
- Pulse Width: 80mS
- Max Terminal Wire: 12mm₂
