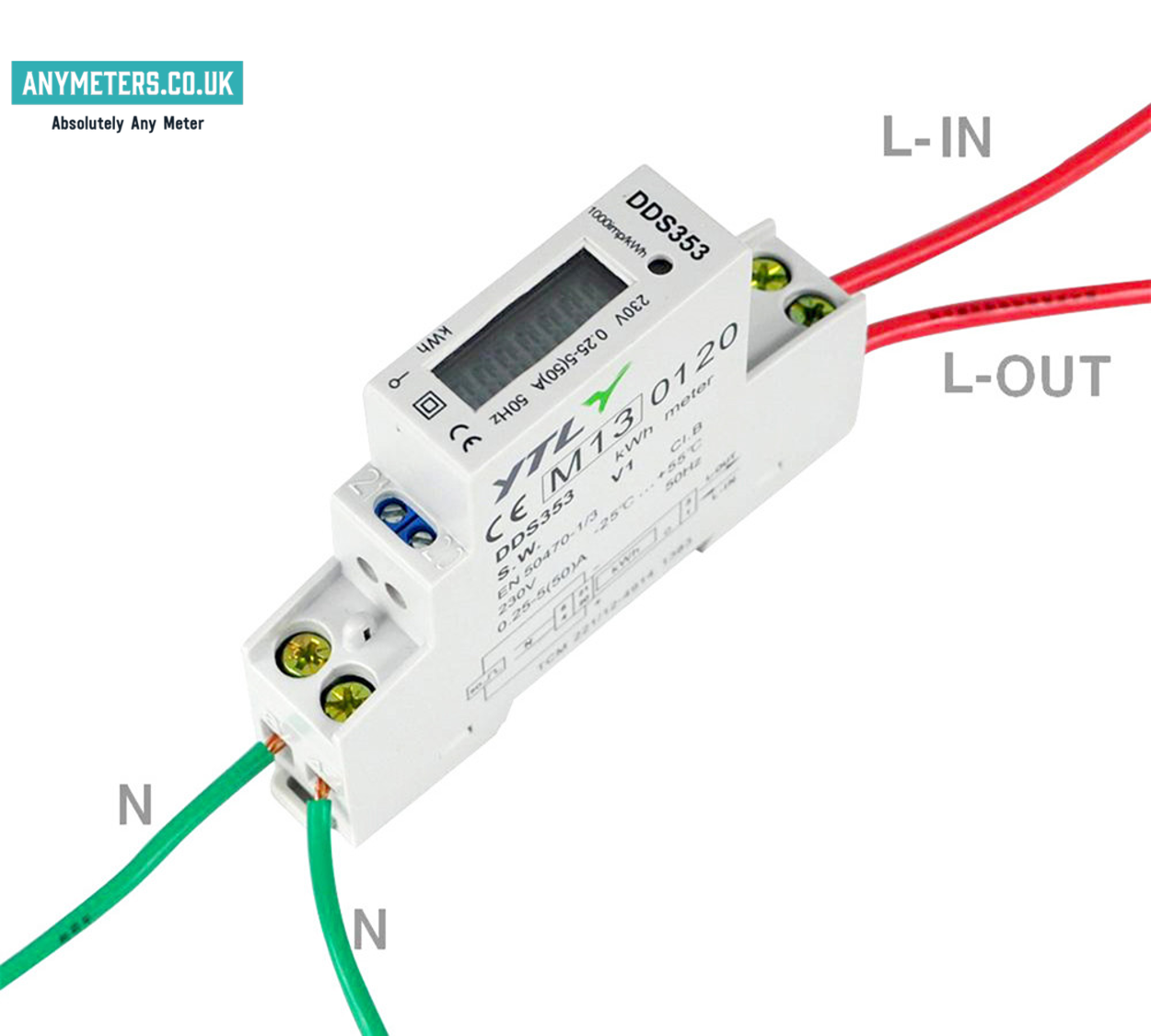

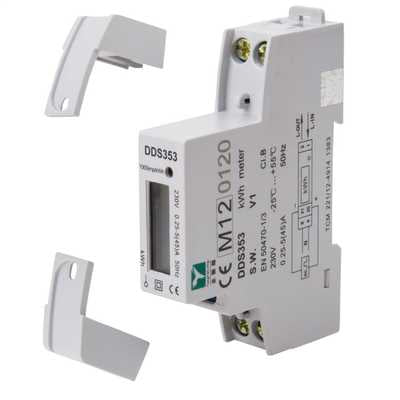

DDS353-MID Single Phase Power Analyser

Vendor
AnyMeters.co.uk
Regular price
£22.50
Sale price
£22.50
Regular price
Sold out
Unit price
per

The DDS353 is the ideal choice for cost-effective sub-billing with MID Certification, easy housing (1-DIN) and on-screen kWh display (LCD).

As standard the meter's Pulse rate is set to: 1000 imp/kWh

Technical Specification

  • MID approved

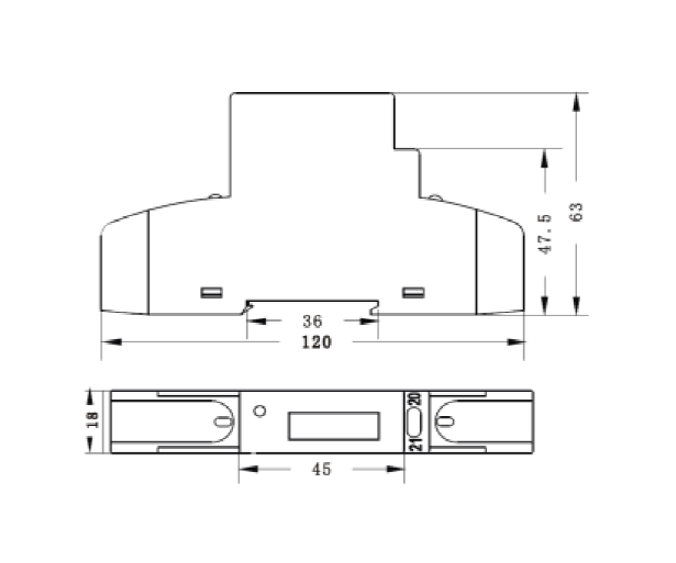

  • Housing: 1-DIN
  • Voltage: 230V ± 20%
  • Current: (5) 45A
  • Accuracy Class: B
  • Standard: EN50470-1 / EN50470-3
  • Frequency: 50Hz ±10%
  • Impulse Constant: Red LED 1000imp/kWh
  • Display: LCD 5+2= 99999.99kW
  • Power Consumption: ≤8VA ≤0.4W
  • Temperature Range: -25⁰C……+55⁰C
  • Pulse Width: 80mS
  • Max Terminal Wire: 12mm₂
