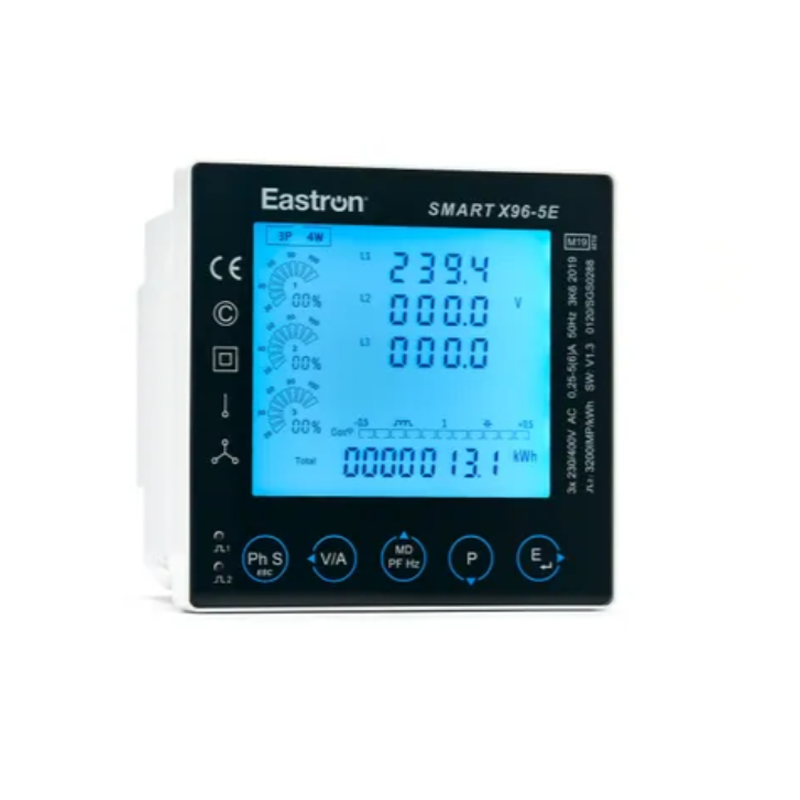

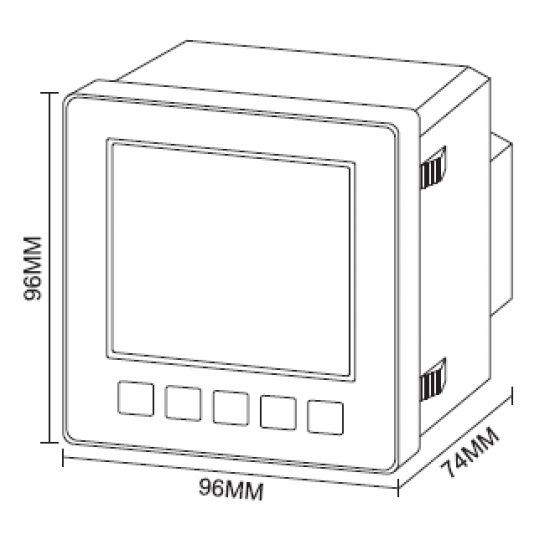

The Smart X96-5E is a high accuracy multifunction power meter that is a traditional wired 1/5A current transformer operated meter.. Configurable for 1p2w, and 3p4w systems and hosting a vast range of measuring parameters such as Amps, Volts, Power, Power and Current Demand, Power Factor, Imported and Exported kWh, Phase Sequence and a Phase Summary page. It is one of the most user-friendly multifunction power meters in the market form installation to end client use. The SMART X96-5E does not have the Individual harmonics, internal three phase supply (Powered from L1 & N internally), voltage output and can not be used in 3p3w applications.
It is typical in most installations that the current transformers are mounted on the left-hand side of the breaker so P1 is facing the correct way. However, it is also possible to mount the current transformer on the right-hand side with P2 facing the breaker. This is possible due to the meter having the option to reverse the flow to correct this type of application.
The SMART X96-5E requires mains voltage inputs and external current transformers in order to operate, it is self-supplied. The Smart X96-5E meter comes complete with RS485 Modbus RTU and dual pulsed outputs as standard.
Technical Specification
MID Certified to Class C (0.5%) accuracy
1/5A Current transformer operated
Total Harmonic Distortion (Amps)
Total Harmonic Distortion (Volts)
Highly visible backlit display from all angles
Programmable reverse flow for right/left side of breaker CT installation.
