All programming must be done before dispatch

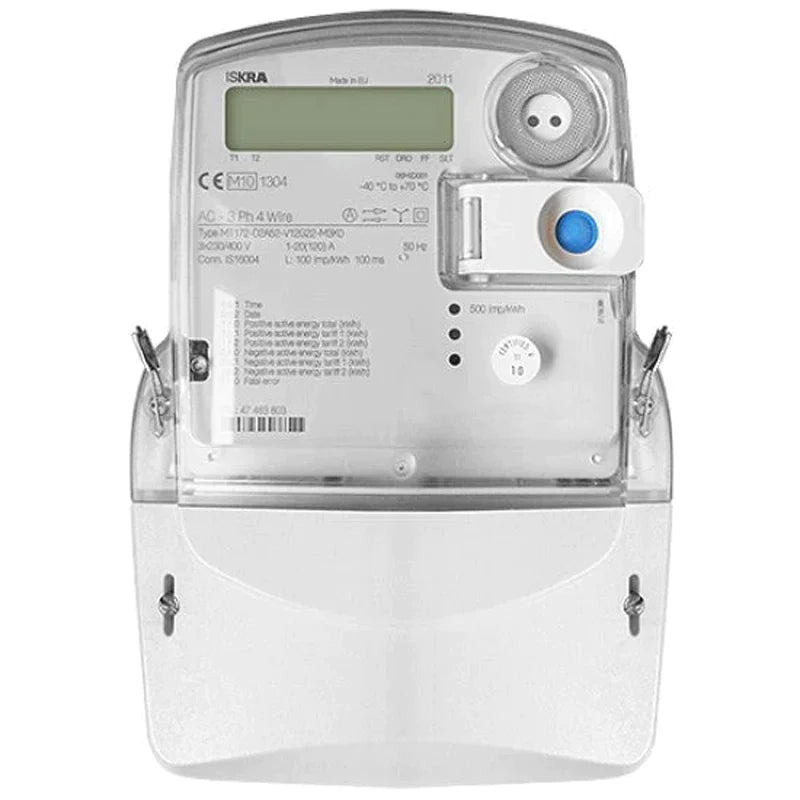

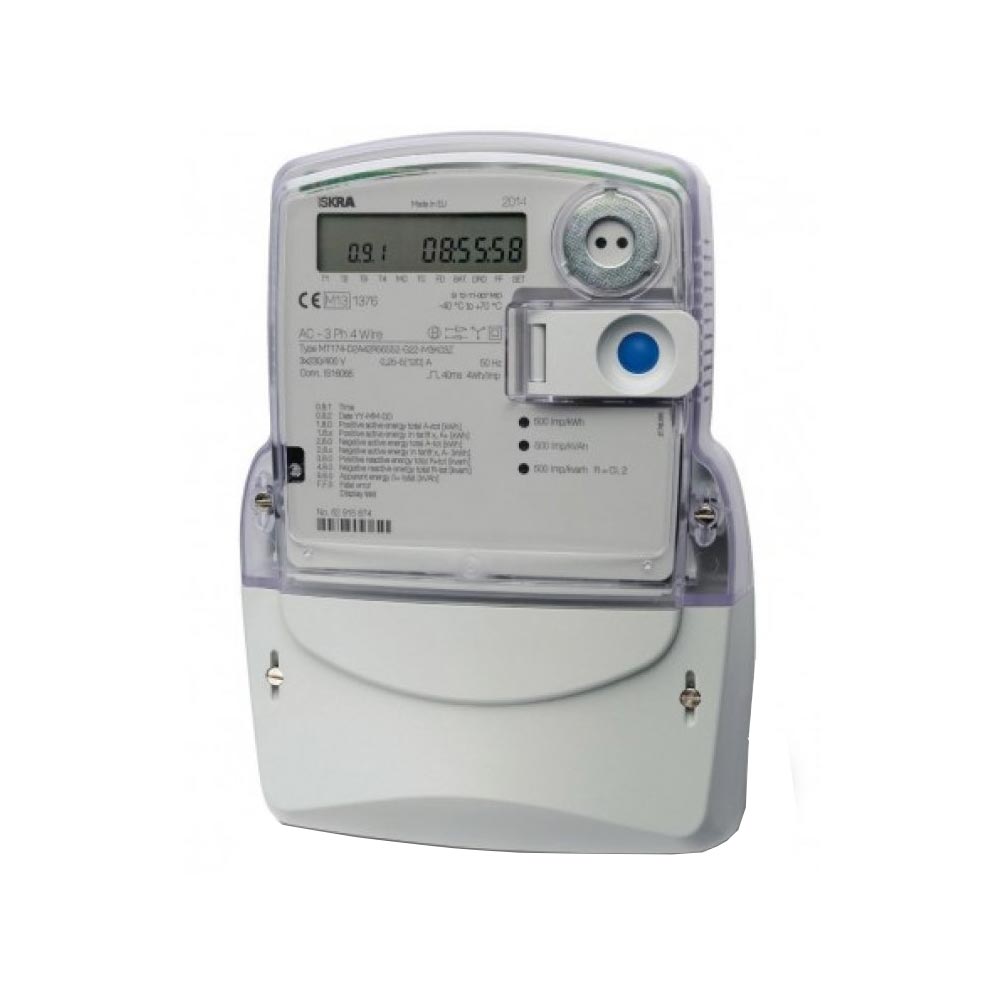

The Iskra MT174-DC-MID electronic three-phase meters are designed for measurement and registration of active, reactive and apparent energy and demand in three-phase four-wire networks. They can be connected directly to the network. The metering and technical properties of the meters comply with the EN 50470-1 and -3 European standards for active energy meters, classes A and B, as well as with the IEC 62053-21 and IEC 62052-11 international standards for electronic meters of active energy for classes 1 and 2, and optionally with the IEC 62053-23 international standard for electronic meters of reactive energy for classes 2 and 3.
A built-in time-switch complies with the IEC 62054-21 and IEC 62052-21 standards. It enables energy registration in up to four tariffs.
The meter software complies with WELMEC 7.2 Issue 1 Software Guide (Measuring Instruments Directive 2004/22/EC). The MT174 meters are designed for mechanical environment M1, electromagnetic environment E2 and climatic environment -40°C … +60°C, relative humidity 95% non-condensing, closed location. The meters can be installed in any position. The meters are designed and manufactured in compliance with the ISO 9001 (2000) standard.
