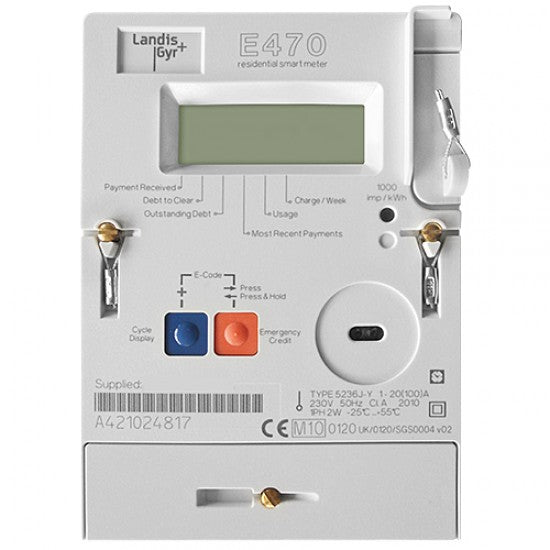

Designed to solve the problems associated with existing Prepayment technologies. The Landis+Gyr E470 Smart meter uses SMS messaging over the standard GSM network to provide Token-less Prepayment , remote meter reading & programming. By not requiring a physical token to add credit, the meter solves the issues of token loss, out of hours call outs and problems associated with token interaction of current Prepayment meters.
Technical Specification
- Meter Type 5236J-Y Electronic token-less prepayment meter
- Approval BS EN 61036 1996, BS EN 62056-21, BS EN 61000-4-5
- Single Phase Network
- Measuring Range 0,5 – 10 (100)A
- Measuring Accuracy Class A or B
- Display 4 starburst characters and 7 segment characters with backlight
- Network 1 phase 2 wire
- Reference Voltage / Frequency 220 - 240v / 50Hz
- Operating Voltage Range -20% to + 15%
- Power Consumption 0.22VA @ 20A; 17.5W 2.2Va max @230V
- Current Range 0,5-10 (100) A, 0,75-15 (100)A, 1-20(100)A
- Contactor 100 Amp
- Auxilary Terminal 2A off peak load control relay
- Temperature Range Operational -25°C to +55°C
- Temperature Range Storage -30°C to +85°C
- Communications Optical Port [IEC62056-21] Remotely via encrypted SMS/GSM
- Quality ISO9001:2000
- Reference Standards EN50470-1 EN50470-3
- Construction Glass filled polycarbonate [V0 rated]
-

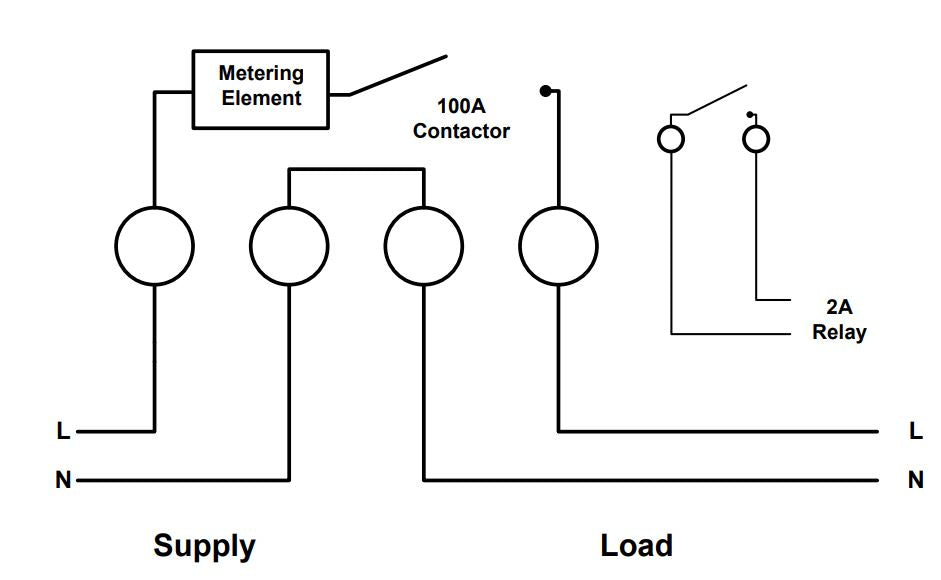

Terminal Arrangement BS/Solid brass conforming to BS 5685
- Terminal Size 53 mm2
