PRODUCT FEATURES:
- Split Core
- Single Phase

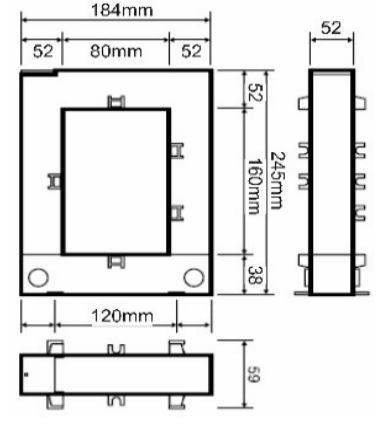

- 80x160mm Aperture
- 1000-6000A Primary Current
- 5A Secondary Current
- Accuracy Class 0.5
- Foot or busbar mounted

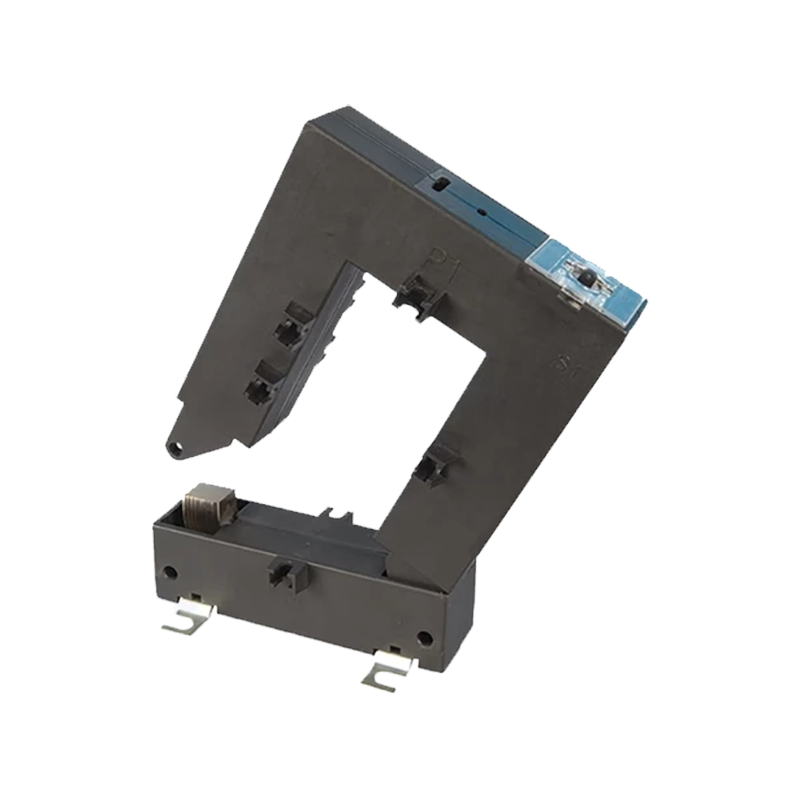

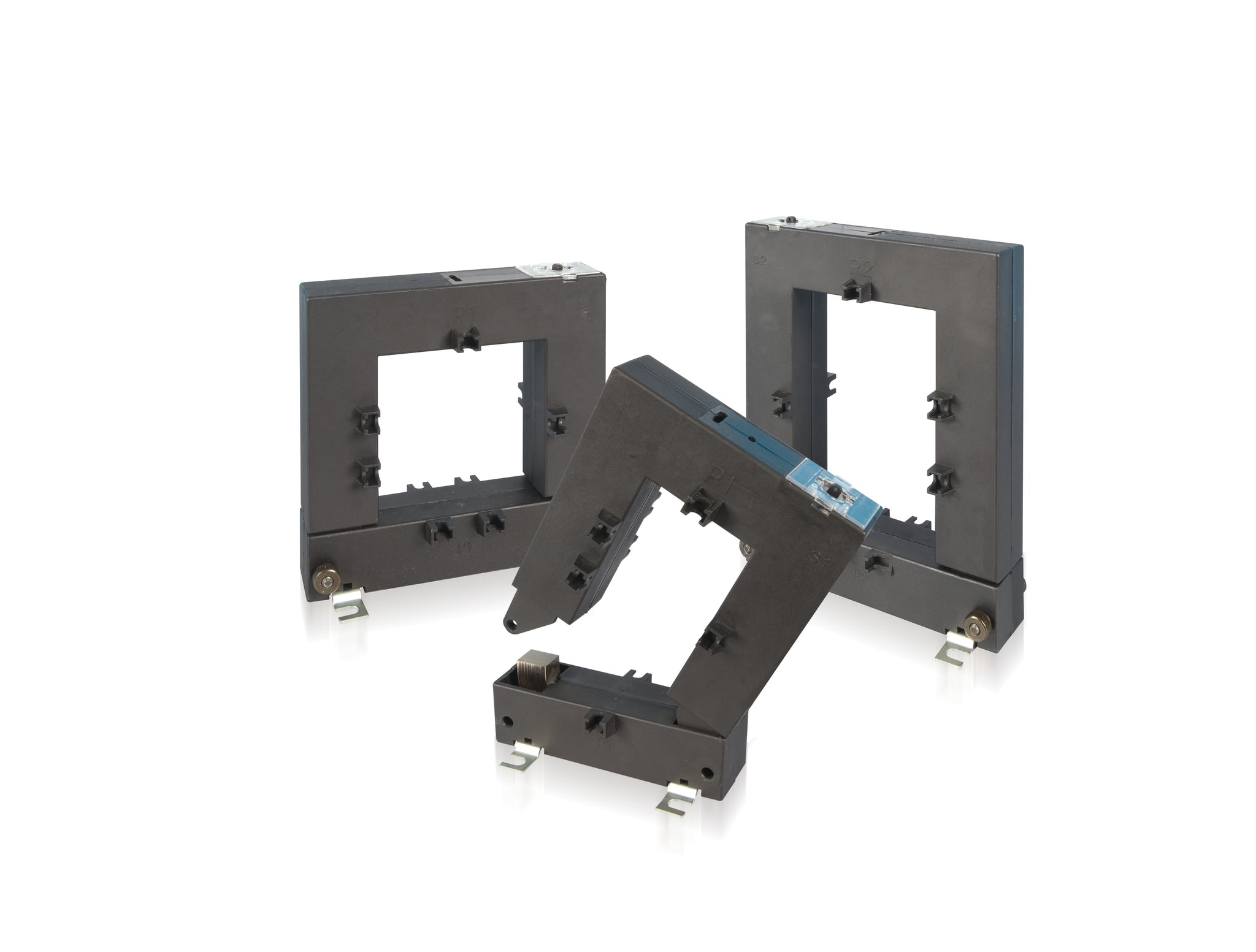

The SC5 is a split core current transformer that offers a cost effective and efficient method by which the current can be measured without the need to break the conductor, thereby reducing installation and commissioning time
