Smart Process SDM120CT-MOD MID Single Phase Power Analyser

Vendor
Smart Process & Control Ltd
Regular price
£65.00
Sale price
£65.00
Regular price
Sold out
Unit price
per
Excluding VAT. Shipping calculated at checkout.

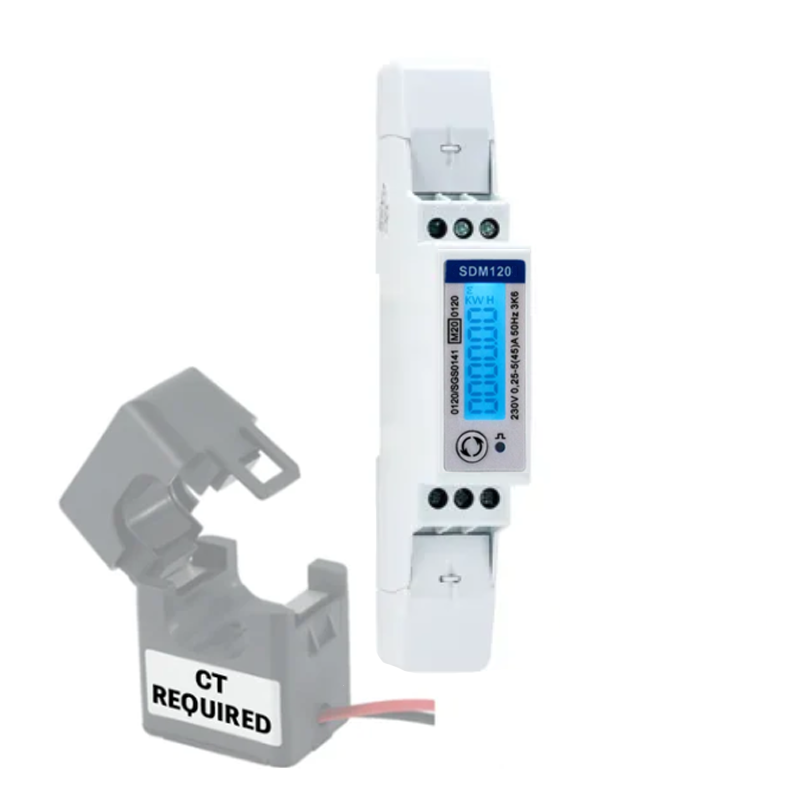

Current Transformer Sold Separately

Please confirm if you need any parameters set including: Modbus ID, Parity, Pulse Rate, Baudrate, Stop bits etc


Product Features:

  • Single Phase 5A current transformer operated
  • MID Certified (B and D)
  • Bi-directional measurement for kW and kWh
  • Configurable pulsed output (Import, Export, Nett kWh)
  • RS485 Modbus Communications
  • Multi Parameter measurements
  • Simple set up and operation

The SDM120CT energy-meter “with a white back-lighted LCD screen for prefect reading” are used to measure single-phase like residential, utility and Industrial application. The unit measures and displays various important electrical parameters, and provide an RS485 Modbus communication port for remote reading and monitoring. Bi-directional energy measurement makes the unit a good choice for solar PV energy metering. The compact design and din rail installation provides a easy and economical solution for your metering demand.

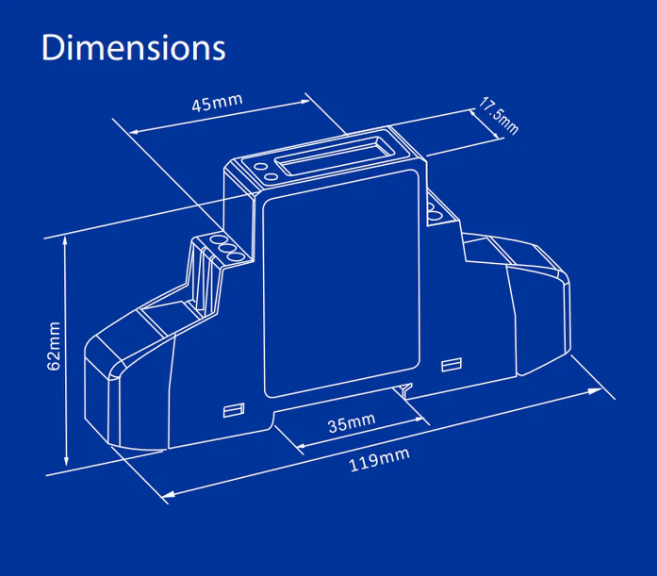

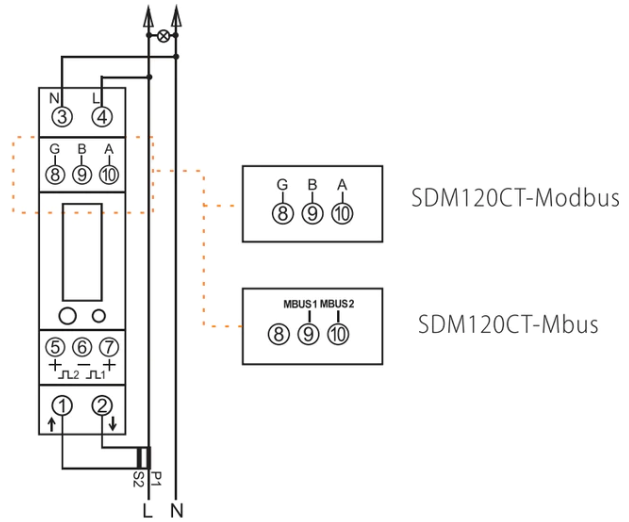

The SDM120CT-MID Approved Single Phase digital power meter works in conjunction with 5Amp Current Transformer. This meter has been MID B&D Certified by SGS UK, proving both its accuracy and quality. This certification allows this model to be used for any sub-billing applications and unlike other alternatives, this meter is housed in a 1 Module DIN rail case, meaning it takes up very little space.

Click here For Product Datasheet
