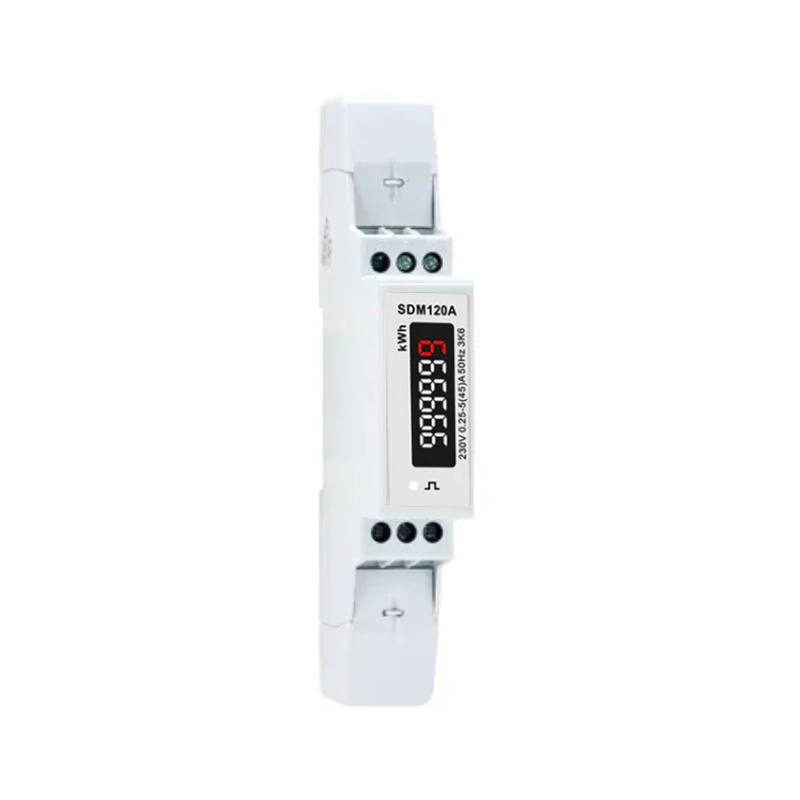

The SDM120A family of meters have been produced to offer a low-cost solution to metering low Amp circuits. The SDM120A range work directly connected to a maximum load SDM120A AC circuit.
All versions of the SDM120A meter come with a pulsed output for remote monitoring.

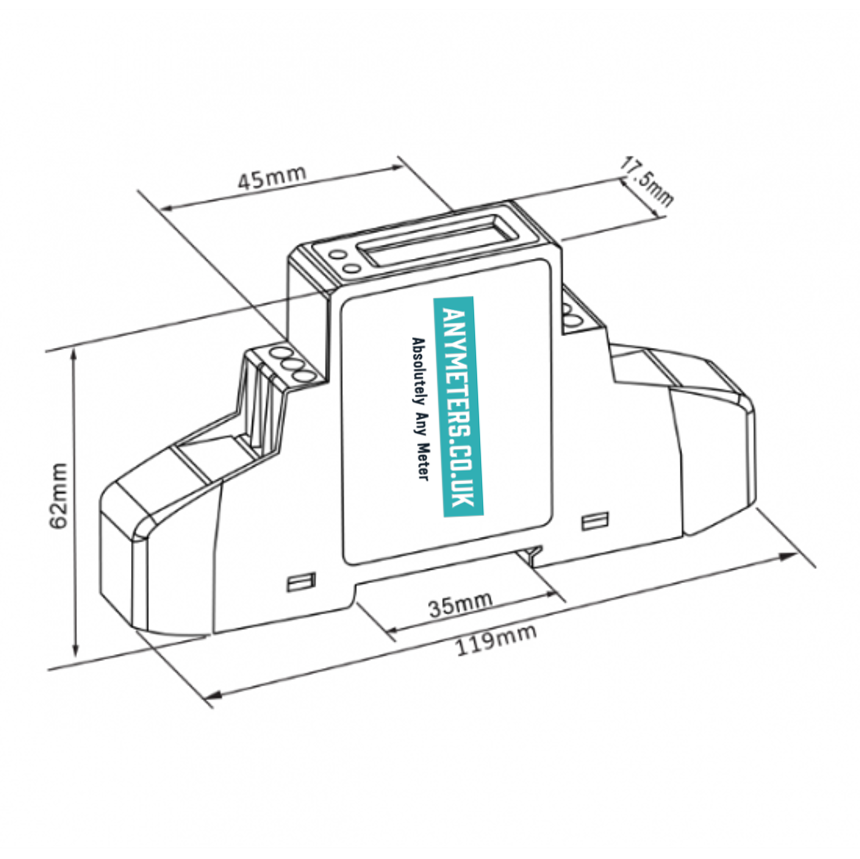

All SDM120A meters are housed in a 1U Dinrail mounted housing. They also come complete with sealable terminal covers to stop any tampering with the connections.
Technical Specification
-
MID B&D Approved - 0120/SGS0221
-

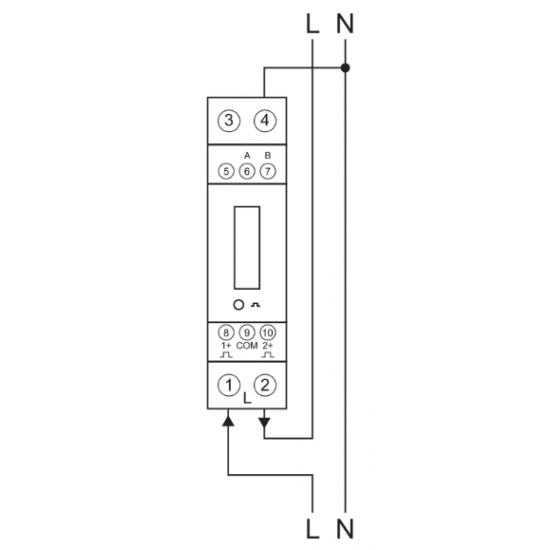

Single Phase (1P2W)
-
45A AC (45A Direct Connected)
-
230V AC
-
Pulsed Output
-
1-DIN Module
- Analogue Display
