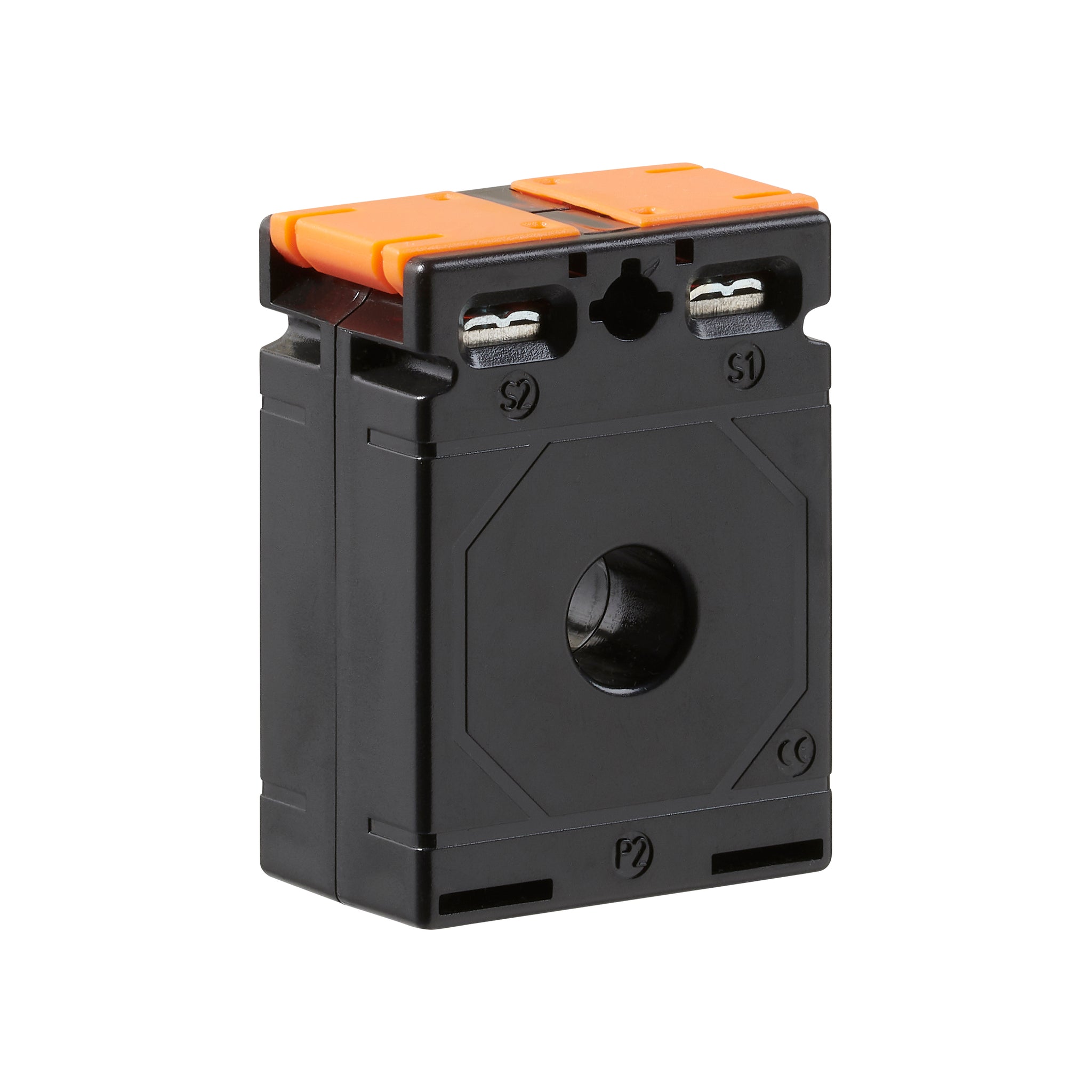

XL2A Current Transformer
XL2A Current Transformer
  • Load image into Gallery viewer, XL2A Current Transformer
  • Load image into Gallery viewer, XL2A Current Transformer

XL2A Current Transformer

Vendor
Crompton
Regular price
£18.20
Sale price
£18.20
Regular price
Sold out
Unit price
per

PRODUCT FEATURES:

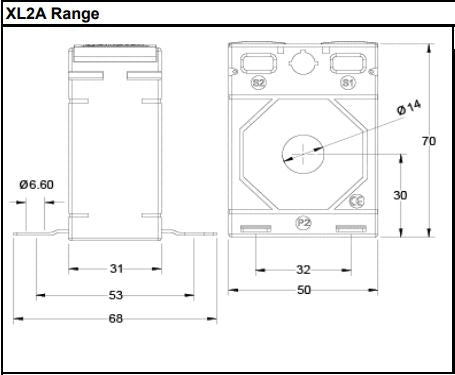

  • 14mm Aperture
  • 40-300A Primary Current
  • 5A Secondary Current
  • Secondary M4 Screw Terminals
  • Accuracy Class 0.5, 1 or 3

The XL2A Range of Solid Core Current Transformers work in conjunction with any 5A CT Operated Electricity Meters. You can use individual XL2A CTs for Single Phase applications, you can also use three of these current transformers for Three Phase applications. The XL2A is ideal for applications such as Distribution systems, Generator sets, Control Panels and Switchgear.
