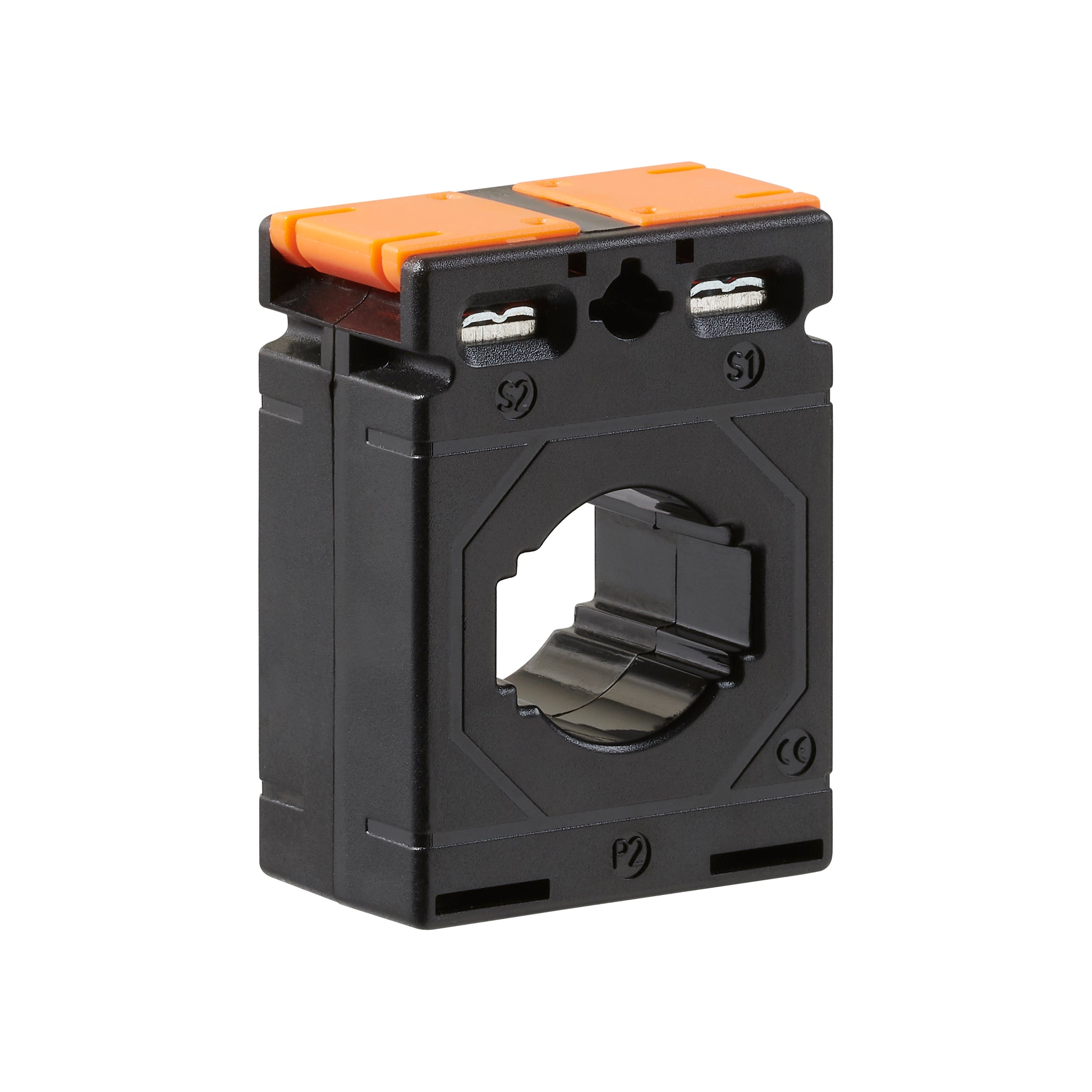

XL2C Current Transformer
XL2C Current Transformer
  • Load image into Gallery viewer, XL2C Current Transformer
  • Load image into Gallery viewer, XL2C Current Transformer

XL2C Current Transformer

Vendor
Crompton
Regular price
£19.60
Sale price
£19.60
Regular price
Sold out
Unit price
per
Excluding VAT. Shipping calculated at checkout.

PRODUCT FEATURES:

  • 26mm Aperture

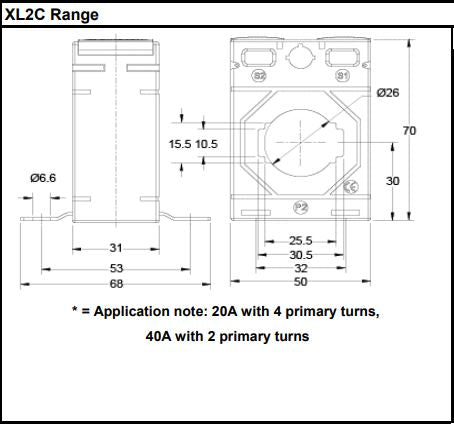

  • Cable or Busbar Aperture: 30.5 x 10.5 mm - 25.5 x 15.5 mm
  • 20-600A Primary Current
  • 5A Secondary Current
  • Secondary M4 Screw Terminals
  • Accuracy Class 0.5, 1 or 3

The XL2C Range of Solid Core Current Transformers work in conjunction with any 5A CT Operated Electricity Meters. You can use individual XL2C CTs for Single Phase applications, you can also use three of these current transformers for Three Phase applications. The XL2C is ideal for applications such as Distribution systems, Generator sets, Control Panels and Switchgear.
