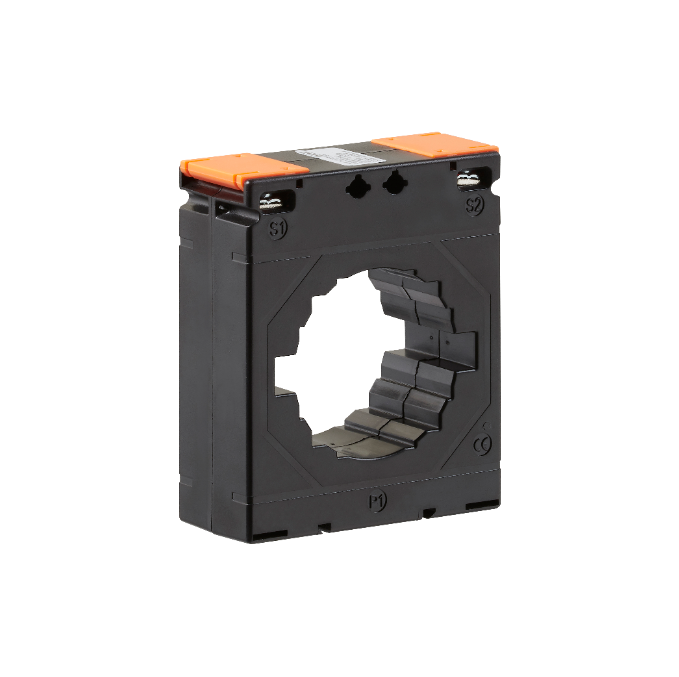

XL7B Current Transformer
XL7B Current Transformer
  • Load image into Gallery viewer, XL7B Current Transformer
  • Load image into Gallery viewer, XL7B Current Transformer

XL7B Current Transformer

Vendor
Crompton
Regular price
£43.40
Sale price
£43.40
Regular price
Sold out
Unit price
per
Excluding VAT. Shipping calculated at checkout.

PRODUCT FEATURES:

  • 65mm Aperture

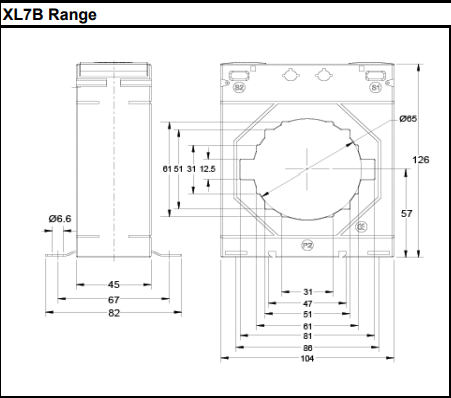

  • Cable or Busbar Aperture: 81 x 12.5 mm - 61 x 21 mm - 31 x 61 mm
  • 200-2000A Primary Current
  • 5A Secondary Current
  • Secondary M4 Screw Terminals
  • Accuracy Class 0.5, 1 or 3

The XL7B Range of Solid Core Current Transformers work in conjunction with any 5A CT Operated Electricity Meters. You can use individual XL7B CTs for Single Phase applications, you can also use three of these current transformers for Three Phase applications. The XL7B is ideal for applications such as Distribution systems, Generator sets, Control Panels and Switchgear.
