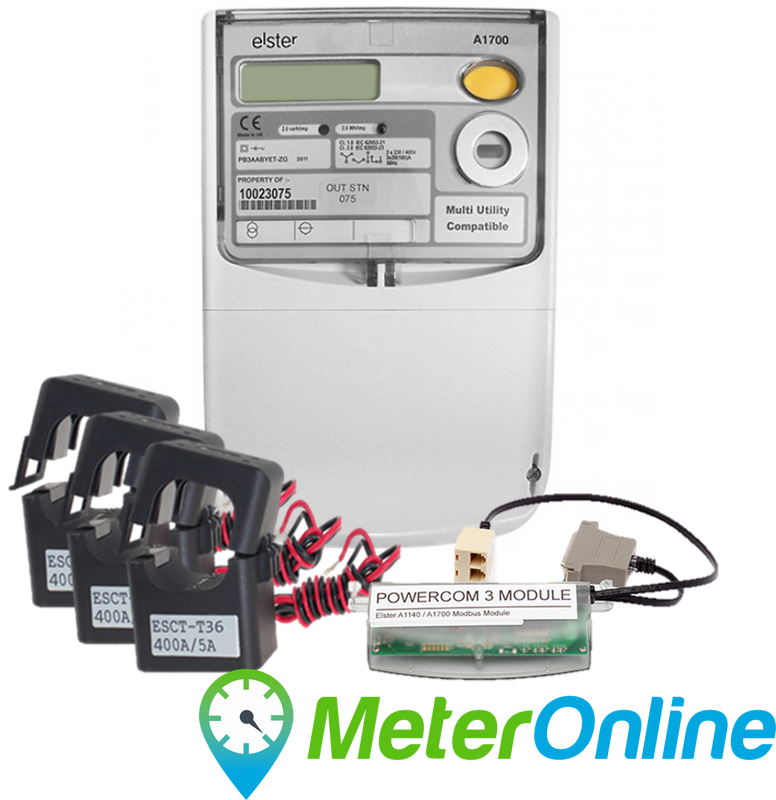

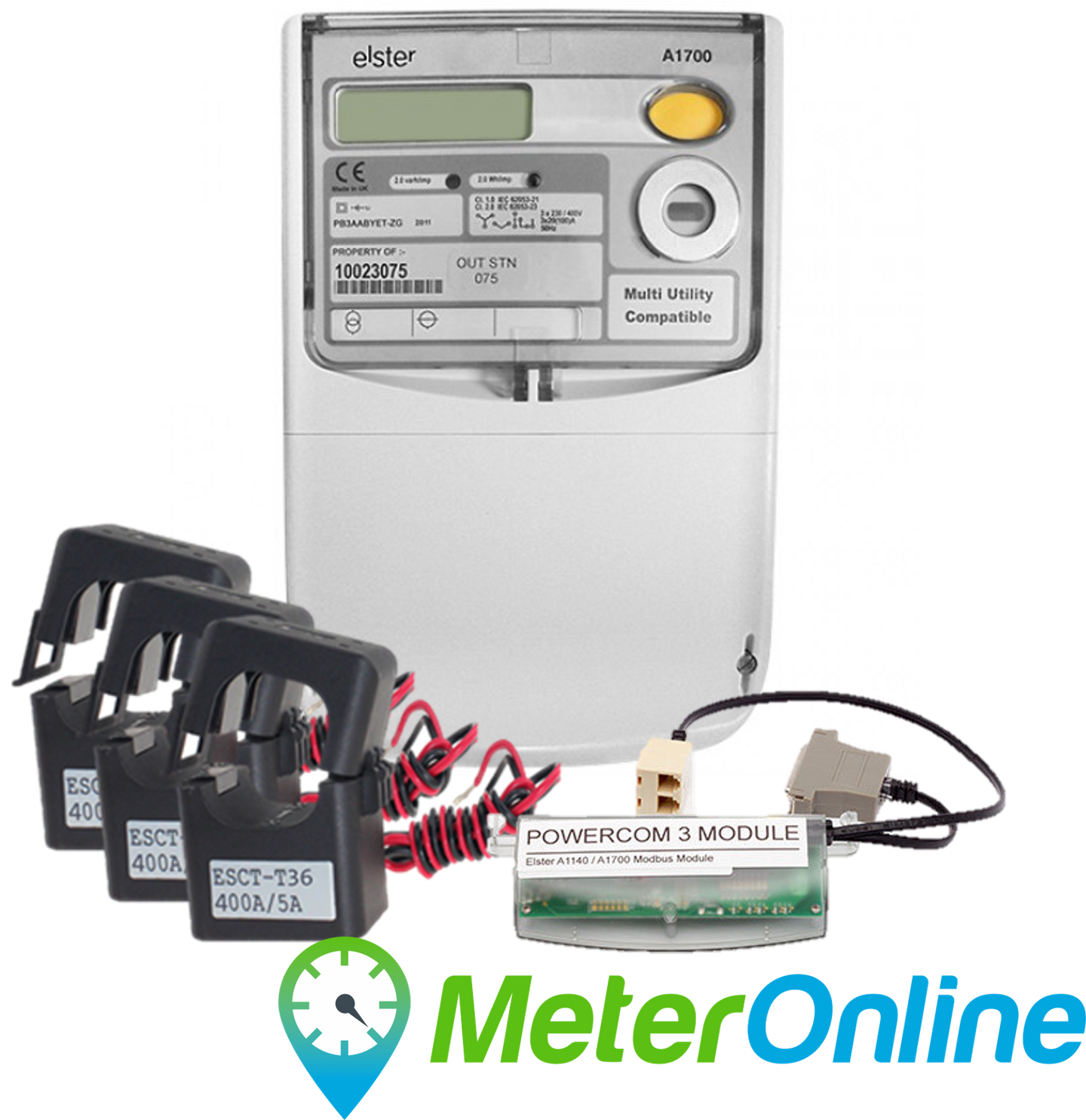

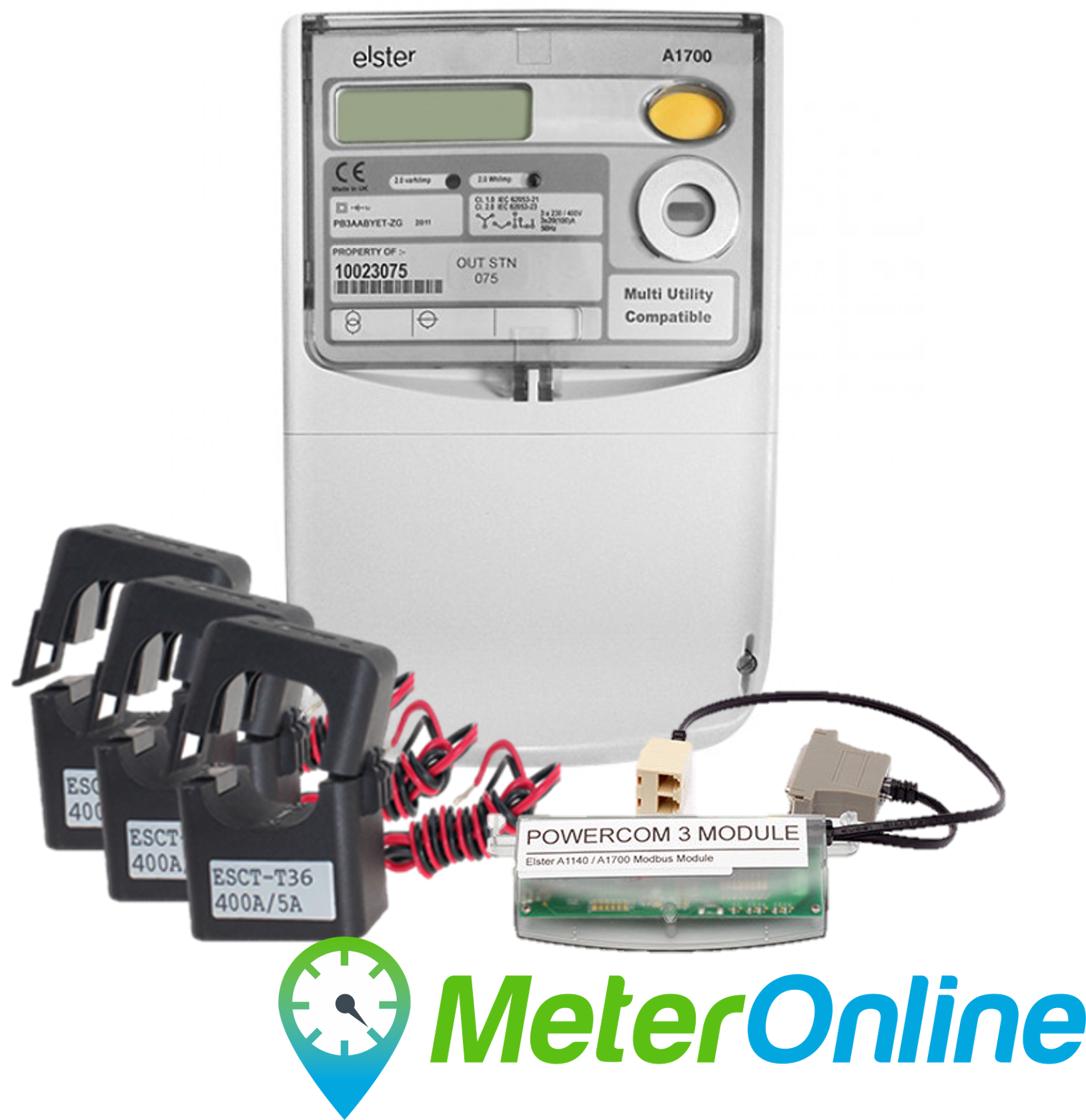

Elster A1700 CT Operated Three Phase Power Analyser ( MeterOnline Ready )
Excluding VAT. Shipping calculated at checkout.
Approved
Checkout
Delivery
Product Specifications
Overview
T24(100-250amp)/T36(300-600amp) Current Transformers
Why order with Anymeters?
- Fast Next-Day Delivery on stocked products you need quickly.
- 1PM Cut-Off for Same-Day Dispatch, clear timelines, no guesswork.
- Free Delivery on Orders Over £500; added value for larger projects.
- Hassle-Free Returns Process with quick pre-authorisation support.
- Easy Damage Claims, notify us within 5 days with photos for swift help.
The Elster A1700 meter provides the complete solution for complex time of use metering for commercial and industrial consumers.The Elster A1700 is of modular design, allowing one module for input or output and one module for communications to be fitted underneath the terminal cover. The Meter can be programmed or read either locally or remotely. Local communications is established via an optical communications port, using a PC or Hand Held Unit incorporating the IEC 62056-21 (formerly IEC 61107) protocol.
To read these smart meters remotely you will need MeterOnline unless you have your own AMR system, The MeterOnline Portal Can Be Accessed Here
Technical Specification
- CT & CT/VT operated
- Three phase networks
- MID Approved
- Communications via optical port or communications module
- Plug in modules for extended functionality
- Comprehensive tariff structure
- 2 line, multilingual dot matrix display
- Instantaneous instrumentation values
- 2 module slots for extended functionality
- 900 or 450 days load profile data
- Accuracy Class 0.2s, 0.5s (CT only), 1 or 2
- Concealed Utility/Reset pushbutton
- High security design
